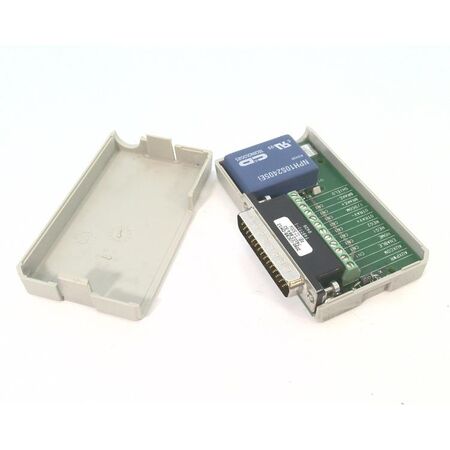

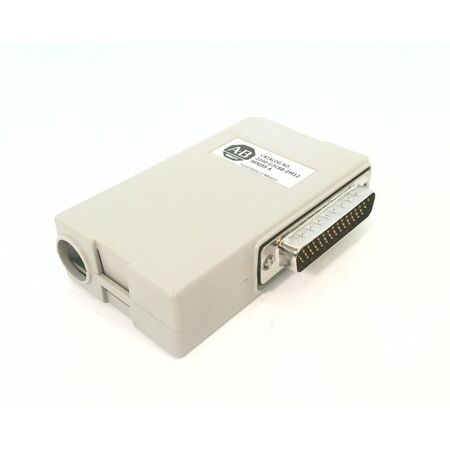

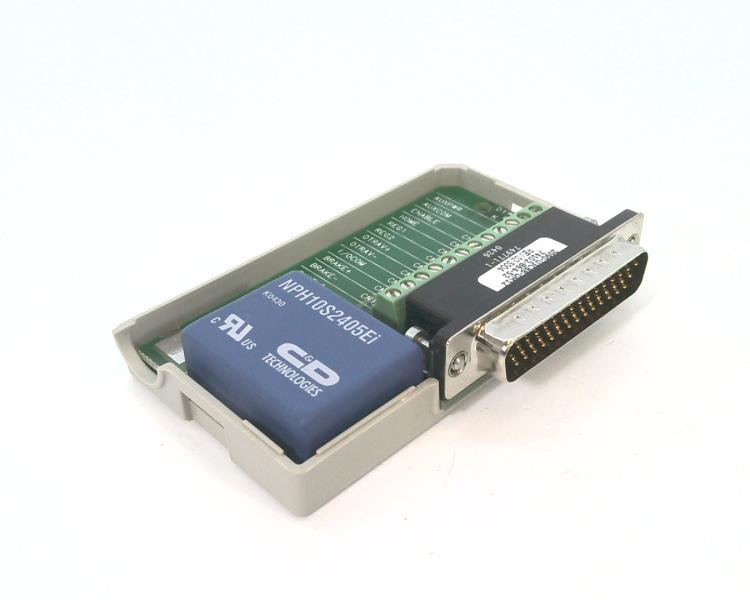

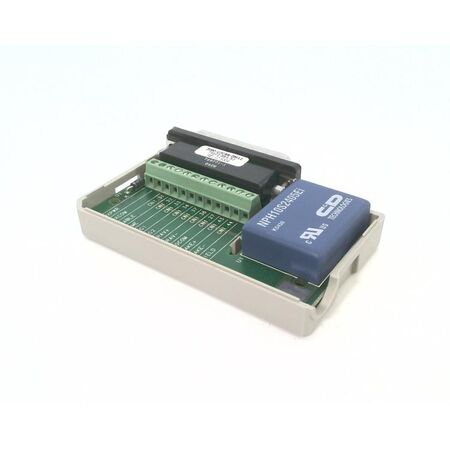

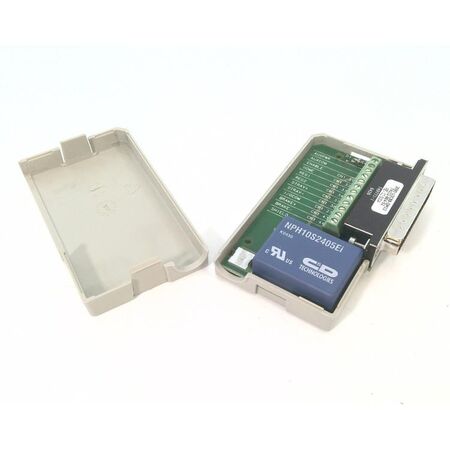

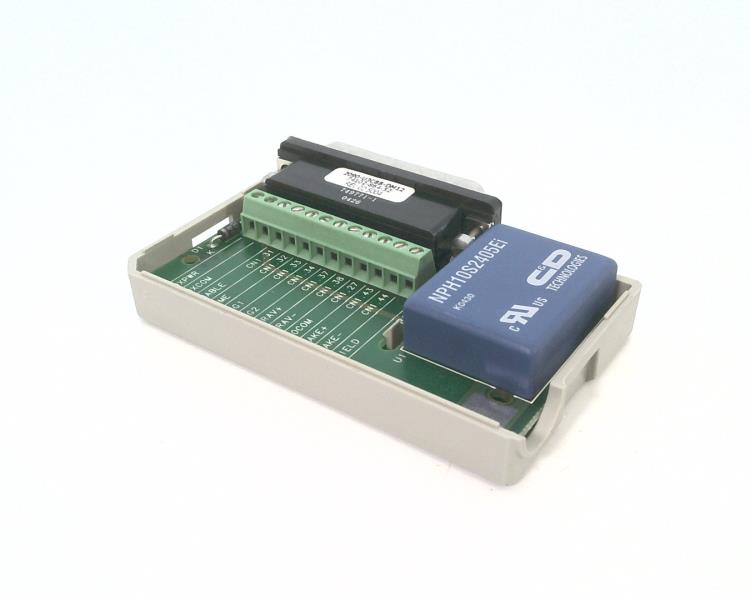

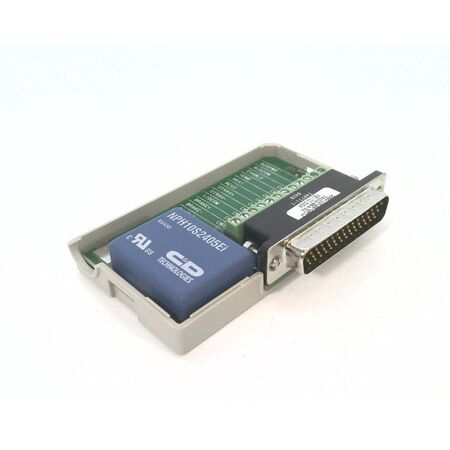

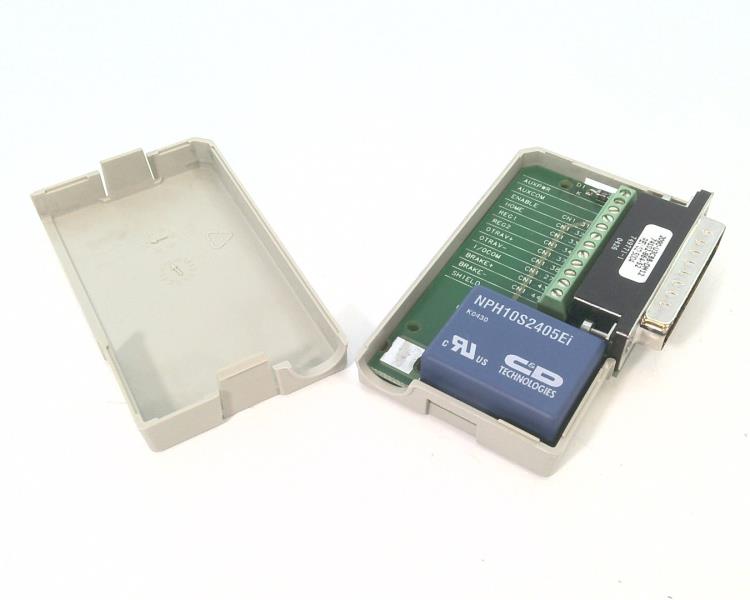

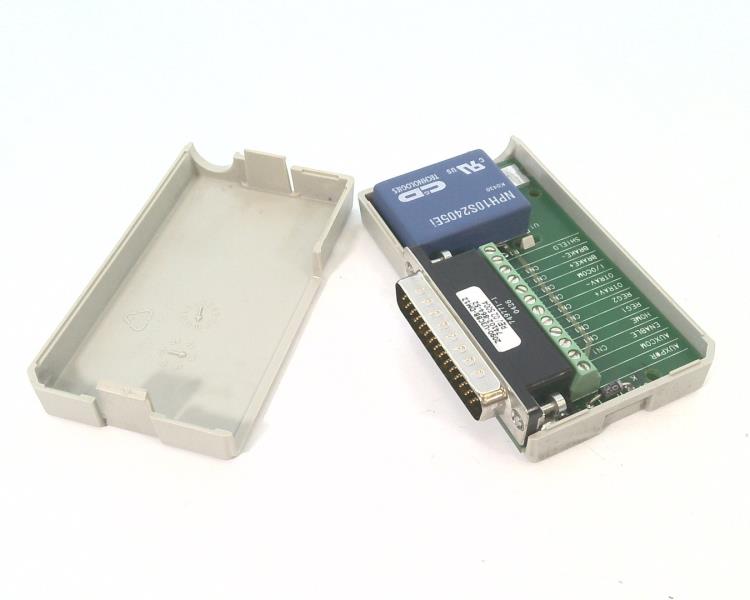

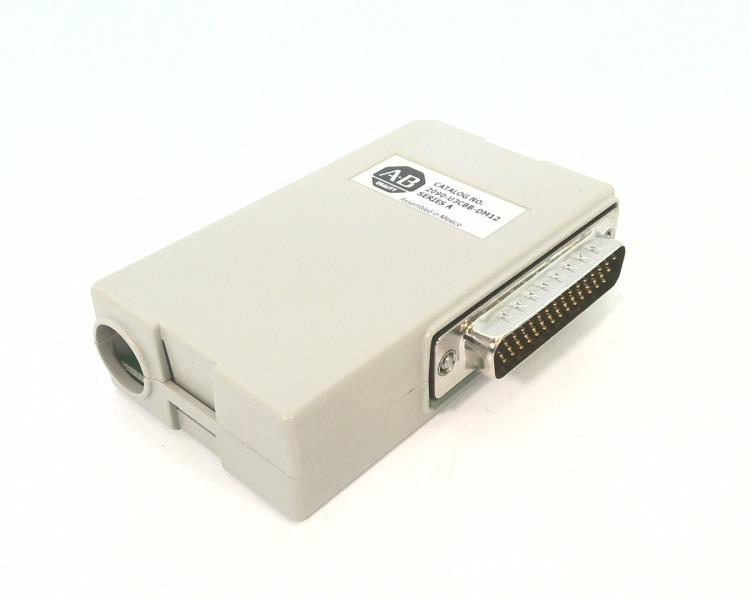

Allen-Bradley 2090U3CBBDM12 Breakout Board for Ultra3000 Drives
The Allen-Bradley 2090U3CBBDM12 breakout board is designed for Ultra3000 drives, featuring a 24-5 VDC auxiliary power converter, 45-pin male D-sub connector, and 12 screw terminals for reliable industrial automation connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 2090U3CBBDM12 Breakout Board for Ultra3000 Drives
Brand: Allen-Bradley
SKU: 2090U3CBBDM12
Alternatively Known As: 2090U3CBBDM12 Breakout Board, Allen-Bradley Drive Breakout Board, Ultra3000 Drive Breakout Module
Technical Specifications
- Auxiliary Power: 24-5 VDC
- Connector Type: 45-pin male D-sub
- Terminals: 12 screw terminals
- Mounting: Drive-mounted
- Compatible with Ultra3000 drives
- Dimensions (H x L x W): 30mm x 80mm x 120mm
- Weight: 0.3 kg
Key Features
- 24-5 VDC auxiliary power converter
- 45-pin male D-sub connector
- 12 screw terminals for secure wiring
- Drive-mounted design for easy integration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration with Ultra3000 drives and compliance with safety standards.
Applications
- Industrial automation systems
- Drive-mounted applications
- Ultra3000 drive integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient power conversion reducing energy waste in drive systems
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply as product is discontinued by manufacturer.
Available Now
The Allen-Bradley 2090U3CBBDM12 Breakout Board is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial drive-mounted applications.
