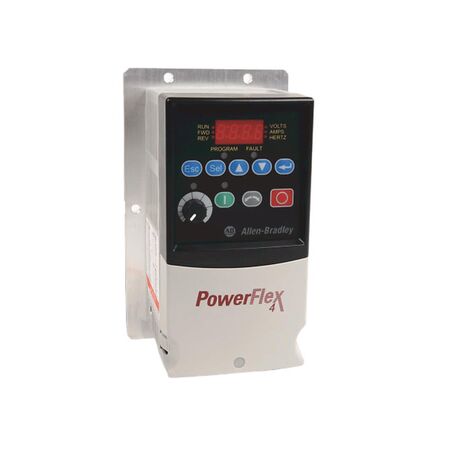

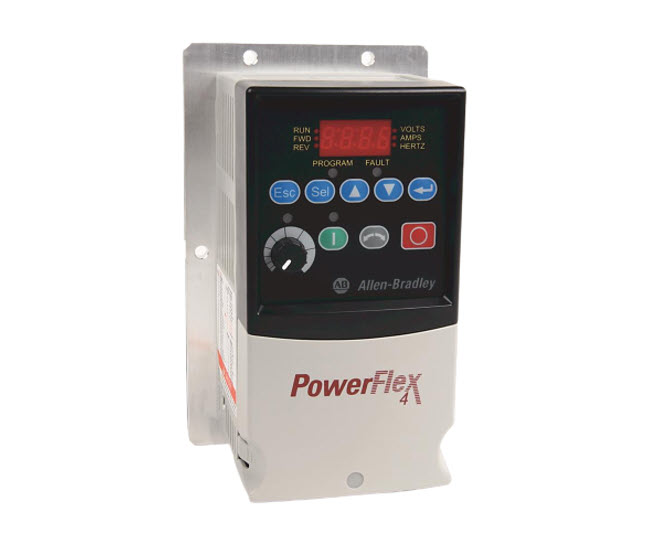

Allen-Bradley 22AD2P3H204 AC Drive 0.75 KW 480V 3 Phase
Allen-Bradley 22AD2P3H204 AC Drive is a 0.75 KW (1 HP) variable frequency drive designed for industrial motor control with 480V 3-phase input and advanced features including brake IGBT and integral keypad.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 22AD2P3H204 AC Drive 0.75 KW 480V 3 Phase
Brand: Allen-Bradley
SKU: 22AD2P3H204
Alternatively Known As: Variable Frequency Drive, VFD, AC Motor Drive, Inverter Drive
Technical Specifications
- Power: 0.75 KW (1 HP)
- Input Voltage: 480V AC, 3 Phase
- Frequency: 50-60 Hz
- Output Current: 2.3 A
- Power Factor: 0.95
- Enclosure Rating: IP20
- Mounting: Plate Mounting
- Brake IGBT included
- Communication: RS485
- Display: Integral keypad with flash ROM and LED display
- Connection: Fixed terminal block
- Dimensions (H x L x W): 250mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- 0.75 KW (1 HP) power rating
- 480V AC input, 3 phase, 50-60 Hz
- 2.3 A output current
- IP20 rated enclosure
- UL-NEMA Type Open
- Plate mounting design
- Includes brake IGBT
- Integral keypad with flash ROM and LED display
- RS485 communication interface
- Fixed terminal block connections
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control
- Automation systems
- Manufacturing equipment requiring variable speed drives
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
Available for immediate purchase, ideal for industrial and manufacturing motor control applications.
