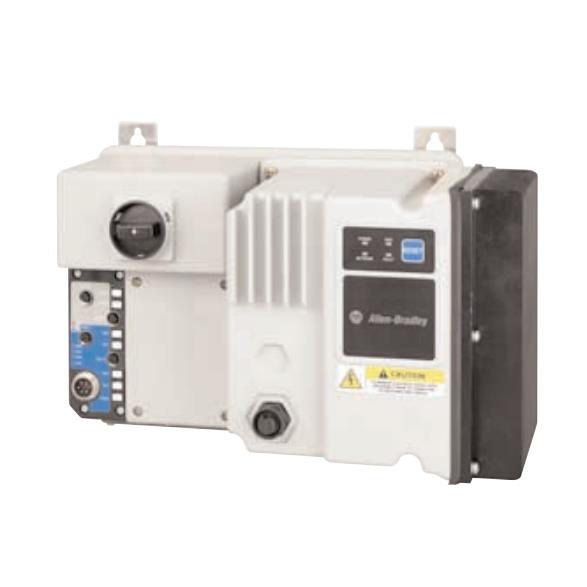

Allen-Bradley 284DFHD2P3Z10CRN3SM Variable Frequency Drive
The Allen-Bradley 284DFHD2P3Z10CRN3SM Variable Frequency Drive offers robust motor control with DeviceNet communication and IP67 protection, suitable for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 284DFHD2P3Z10CRN3SM Variable Frequency Drive
Brand: Allen-Bradley
SKU: 284DFHD2P3Z10CRN3SM
Alternatively Known As: VFD, Variable Speed Drive, Allen-Bradley VFD, DeviceNet VFD, IP67 Variable Frequency Drive
Technical Specifications
- Input Voltage: 380-480V
- Current: 2.3 Amp
- Power: 0.75 kW (1.0 HP)
- Control Voltage: 24 VDC
- Communication: DeviceNet
- Protection Rating: IP67
- Short Circuit Protection: 10 Amp rated
- Cable: 3 meter shielded conduit cable
- Control Method: Volts per Hertz
- Keypad: Hand-Off-Auto (HOA)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 5 kg
Key Features
- Variable Frequency Drive for precise motor speed control
- DeviceNet communication protocol
- IP67 rated for dust and water resistance
- Volts per Hertz control method
- Supports 380-480V input voltage
- 2.3 Amp current rating
- 0.75 kW (1.0 HP) motor power
- 24 VDC control voltage
- 10 Amp rated short circuit protection
- Includes 3 meter shielded conduit cable
- Hand-Off-Auto (HOA) keypad for local control
- Safety monitor integrated
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with variable frequency drives and DeviceNet systems to ensure safety and compliance.
Applications
- Industrial motor speed control
- Automation systems
- Manufacturing process control
- Conveyor systems
- Pumps and fans
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 284DFHD2P3Z10CRN3SM Variable Frequency Drive is available for immediate purchase, ideal for industrial motor control and automation applications.
