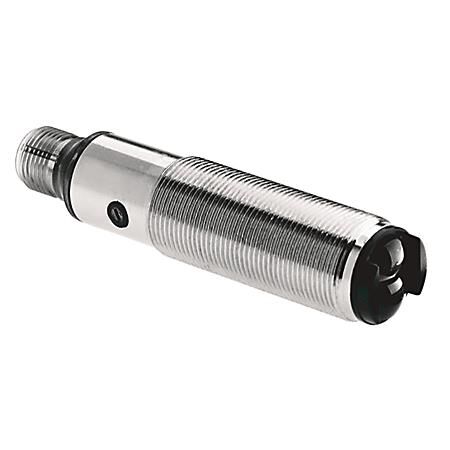

Allen-Bradley 42CMD8MNAD4 Metal Cylindrical Laser Sensor
The Allen-Bradley 42CMD8MNAD4 is a metal cylindrical laser sensor with an 18 mm mount, designed for precise metal detection in industrial automation applications. Features include a teach button, fast response, and a 4-pin micro QD connector.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 42CMD8MNAD4 Metal Cylindrical Laser Sensor
Brand: Allen-Bradley
SKU: 42CMD8MNAD4
Alternatively Known As: Metal Cylindrical Laser Sensor, 18mm Metal Sensor, Allen-Bradley Laser Proximity Sensor
Technical Specifications
- Sensor Type: Metal cylindrical laser sensor
- Mounting Diameter: 18 mm
- Sensing Method: Standard diffuse laser
- Output Type: NPN DC complementary LO/DO
- Connector: 4-pin micro quick disconnect
- Response Time: 0.70 ms
- Minimum Sensing Distance: 3 mm
- Operating Distance: 400 mm
- Sensing Distance: 300 mm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Cylindrical metal sensor with 18 mm mount
- Standard diffuse laser sensing technology
- Teach button for easy configuration
- NPN output with DC complementary LO/DO
- 4-pin micro quick disconnect (QD) connector
- Fast response time of 0.70 ms
- Minimum sensing distance of 3 mm
- Operating distance up to 400 mm
- Sensing distance of 300 mm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor setup and electrical safety.
Applications
- Industrial automation for metal detection
- Manufacturing process control
- Machine safety and monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending equipment life
- Energy-efficient laser technology minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 42CMD8MNAD4 Metal Cylindrical Laser Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
