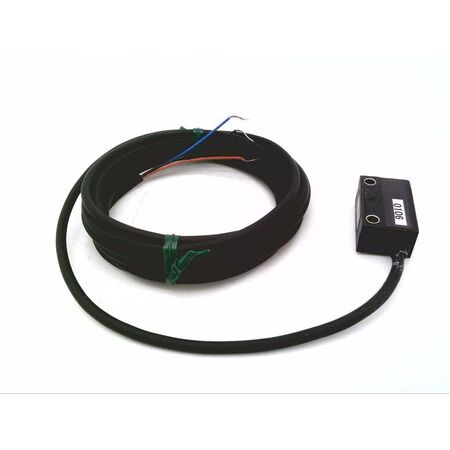

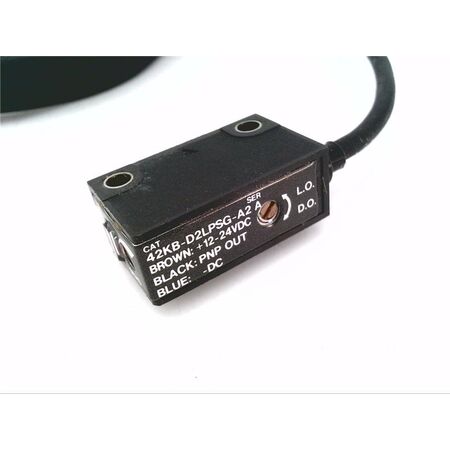

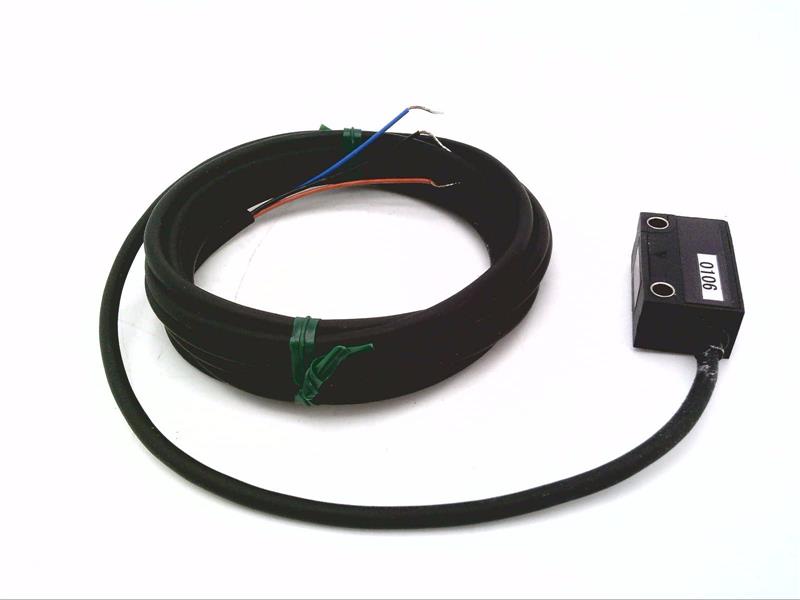

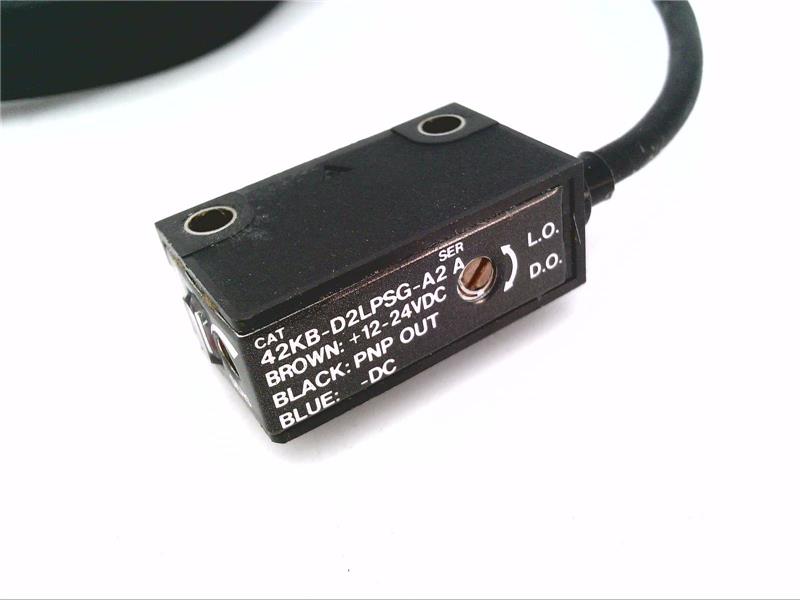

Allen-Bradley 42KBD2LPSGA2 Micro Rectangular Sensor
The Allen-Bradley 42KBD2LPSGA2 Micro Rectangular Sensor offers reliable standard diffuse sensing with visible red light, suitable for industrial automation with IP67 and NEMA 6P protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 42KBD2LPSGA2 Micro Rectangular Sensor
Brand: Allen-Bradley
SKU: 42KBD2LPSGA2
Alternatively Known As: Micro rectangular photoelectric sensor, Allen-Bradley diffuse sensor, 42KBD2LPSGA2 sensor
Technical Specifications
- Sensor Type: Standard diffuse
- Light Source: Visible red
- Output Type: PNP
- Adjustability: Manually adjustable
- Cable Length: 2 meters (6.5 feet)
- Housing Material: Plastic
- View Orientation: Side view
- Ingress Protection: IP67, NEMA 6P
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- Micro rectangular sensor with side through hole
- Standard diffuse sensing with visible red light
- Manually adjustable settings
- PNP output type
- DC LO or DO selectable
- 2 meter (6.5 ft) cable included
- Plastic housing with side view
- IP67 and NEMA 6P rated for dust and water protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 and NEMA 6P rating reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 42KBD2LPSGA2 Micro Rectangular Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
