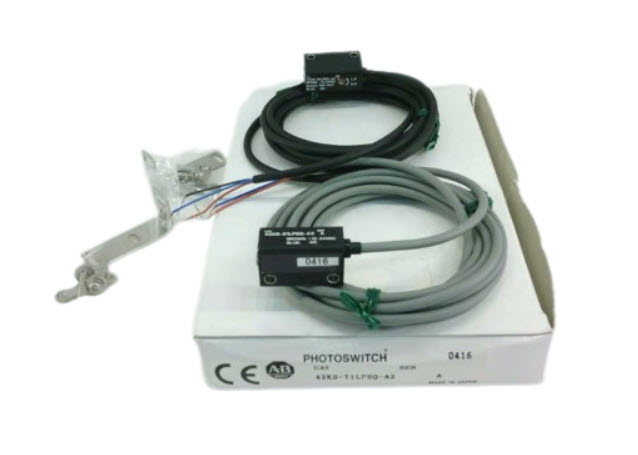

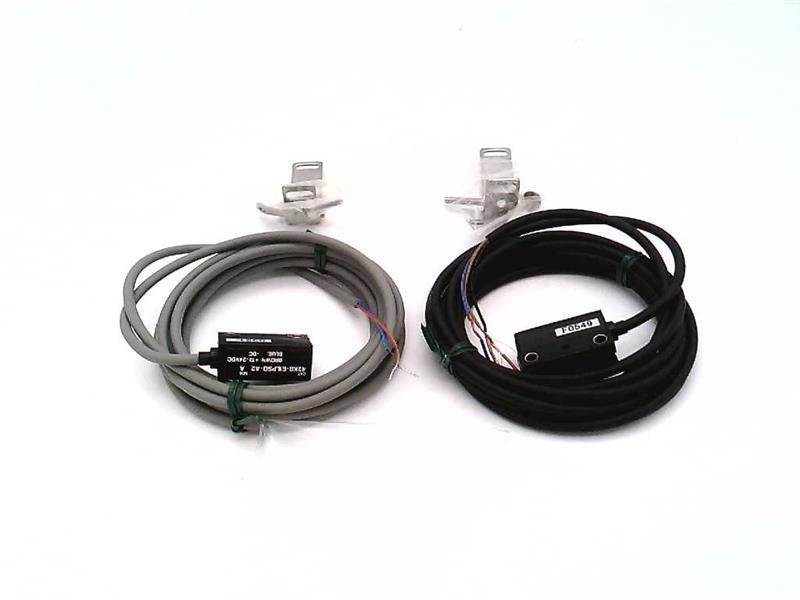

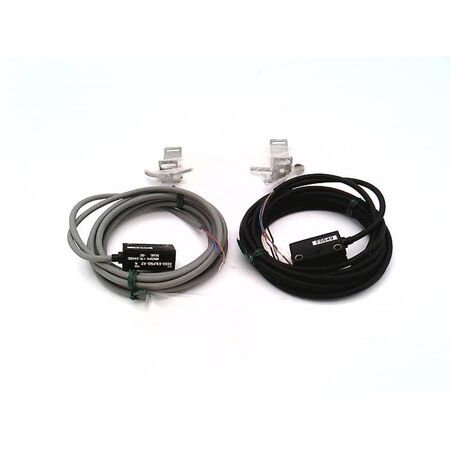

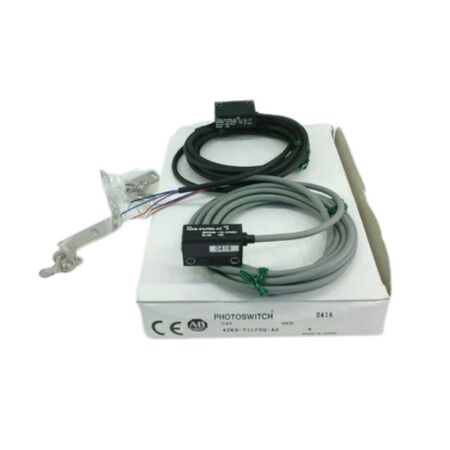

Allen-Bradley 42KBT1LPSQA2 Micro Rectangular Infrared Sensor
The Allen-Bradley 42KBT1LPSQA2 is a micro rectangular infrared sensor with side through hole design, offering reliable object detection with PNP output and adjustable settings, suitable for harsh industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 42KBT1LPSQA2 Micro Rectangular Infrared Sensor
Brand: Allen-Bradley
SKU: 42KBT1LPSQA2
Alternatively Known As: Micro rectangular infrared sensor, Allen-Bradley photoelectric sensor, 42KBT1LPSQA2 sensor
Technical Specifications
- Sensor Type: Micro rectangular
- Beam Type: Transmitted infrared beam pair
- Output Type: PNP
- Selectable Output: DC LO or DO
- Cable Length: 2 meters (6.5 feet)
- Housing Material: Plastic
- Sensing Direction: Side view
- Ingress Protection: IP67, NEMA 6P
- Dimensions (H x L x W): 10mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Micro rectangular sensor with side through hole
- Transmitted infrared beam pair
- Manually adjustable settings
- PNP output type
- DC LO or DO selectable
- 2 meter (6.5 feet) cable length
- Plastic housing
- Side view sensing
- IP67 and NEMA 6P rated for dust and water resistance
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 and NEMA 6P rated housing reduces need for frequent replacements
- Energy-efficient infrared sensing technology
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 42KBT1LPSQA2 Micro Rectangular Infrared Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
