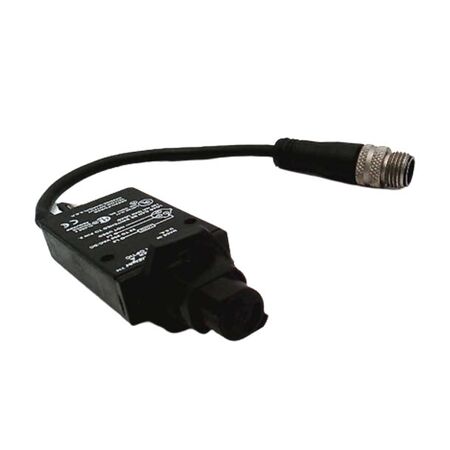

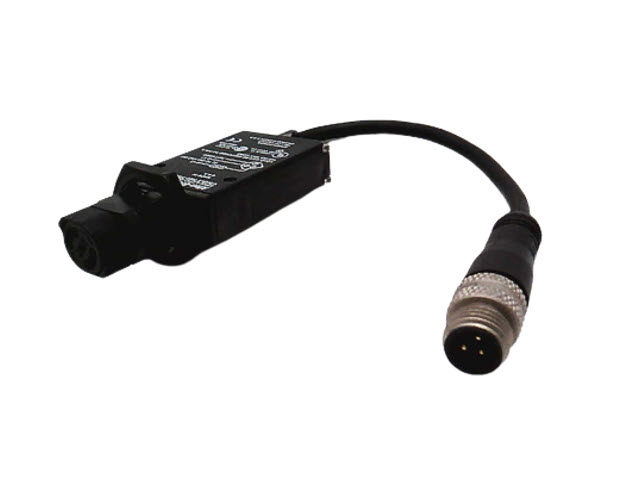

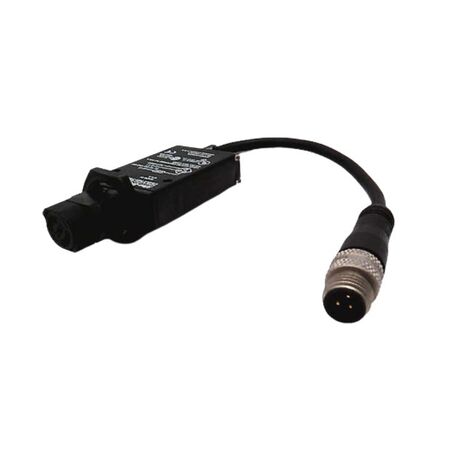

Allen-Bradley 42KLL2TCG3 Minisight Sensor 18mm Cylindrical
The Allen-Bradley 42KLL2TCG3 Minisight Sensor is an 18mm cylindrical fiber optic sensor with visible red light, designed for industrial automation with robust environmental protection ratings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 42KLL2TCG3 Minisight Sensor 18mm Cylindrical
Brand: Allen-Bradley
SKU: 42KLL2TCG3
Alternatively Known As: MiniSight Fiber Optic Sensor, 18mm Cylindrical Sensor, Allen-Bradley Fiber Optic Sensor
Technical Specifications
- Sensor Type: Fiber optic small aperture
- Light Source: Visible red
- Output Type: Power MOSFET 2 channels
- Output Selectable: AC/DC low or DC output
- Connection: 3 pin AC micro quick disconnect
- Response Time: 8.30 ms
- Operation Mode: Standard on/off
- Housing Material: Plastic
- Environmental Ratings: IP67, NEMA 6P, NEMA 4X
- Washdown Rating: 1200 PSI
- Dimensions (H x L x W): 50mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- 18 mm cylindrical design with side through hole
- Fiber optic small aperture with visible red light
- Power MOSFET output, 2 channels
- AC/DC low or DC output selectable
- 3 pin AC micro quick disconnect
- Plastic housing
- Standard on/off operation
- IP67, NEMA 6P, and NEMA 4X rated for harsh environments
- 1200 PSI washdown rating
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation and control systems
- Manufacturing process monitoring
- Machine safety and presence detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 and NEMA 6P/4X ratings reduce need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 42KLL2TCG3 Minisight Sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
