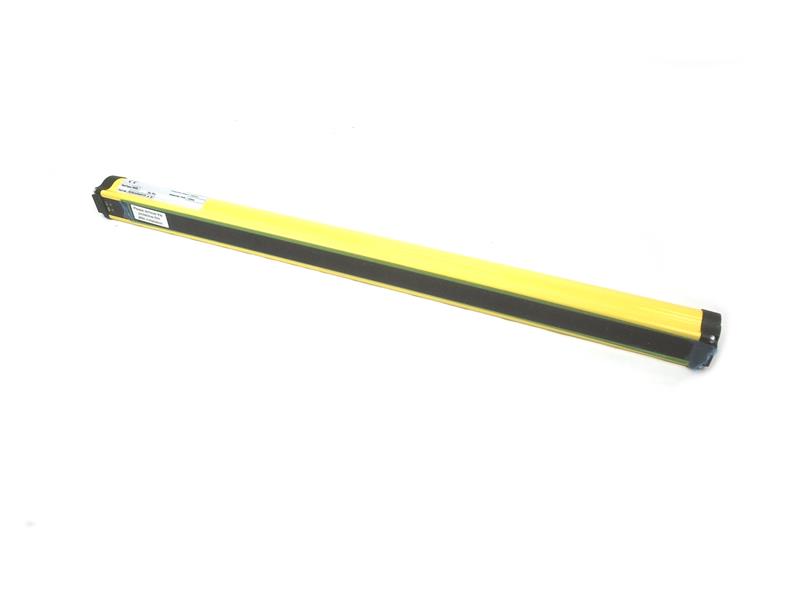

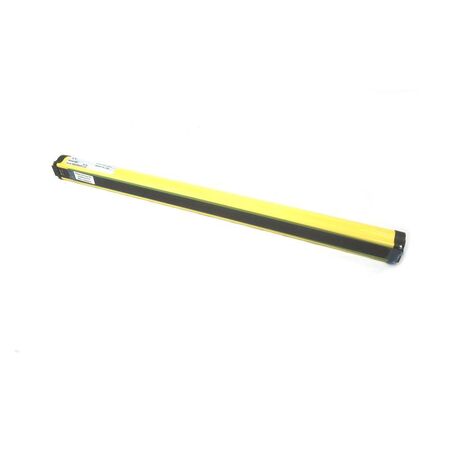

Allen-Bradley 440LR2KA0640YD GuardShield Light Curtain Receiver

SKU: 440LR2KA0640YD
$1,460.70 List price: $1,820.30
+
The Allen-Bradley 440LR2KA0640YD GuardShield Light Curtain Receiver is a Type 2 safety device designed for industrial guarding applications, offering reliable presence detection with IP65 protection and a 640mm protective height.

Product Name/Title: Allen-Bradley 440LR2KA0640YD GuardShield Light Curtain Receiver

Brand: Allen-Bradley

SKU: 440LR2KA0640YD

Alternatively Known As: GuardShield Light Curtain Receiver, Safety Light Curtain, Allen-Bradley Light Curtain

Technical Specifications
  • Type: 2 safety light curtain receiver
  • Power: 7W at 24VDC
  • Resolution: 30mm
  • Range: 0.3 to 16 meters
  • Protective height: 640mm
  • Operating temperature: -10 to 55°C
  • Ingress protection: IP65
  • Dimensions (H x L x W): 640mm x 40mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Type 2 safety light curtain receiver
  • IP65 rated for dust and water resistance
  • 30mm resolution for precise detection
  • Operating ambient temperature from -10 to 55°C
  • Power consumption of 7 watts at 24VDC
  • Protective height of 640mm
  • Detection range from 0.3 to 16 meters
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety light curtain systems to ensure compliance with safety standards.
Applications
  • Industrial safety guarding for machinery
  • Automation systems requiring presence detection
  • Manufacturing lines needing operator protection
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Enhances workplace safety reducing risk of accidents and associated environmental impacts
  • Durable IP65 design reduces need for frequent replacements
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 440LR2KA0640YD GuardShield Light Curtain Receiver is available for immediate purchase, ideal for industrial safety guarding and automation applications.
