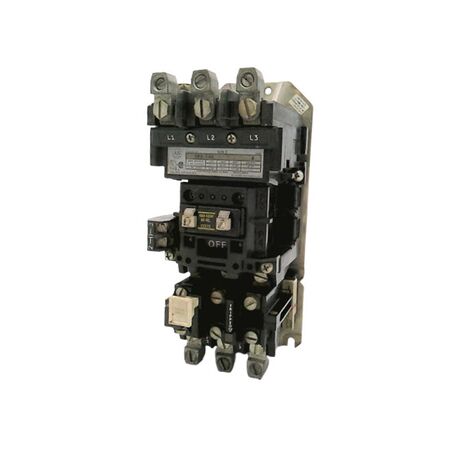

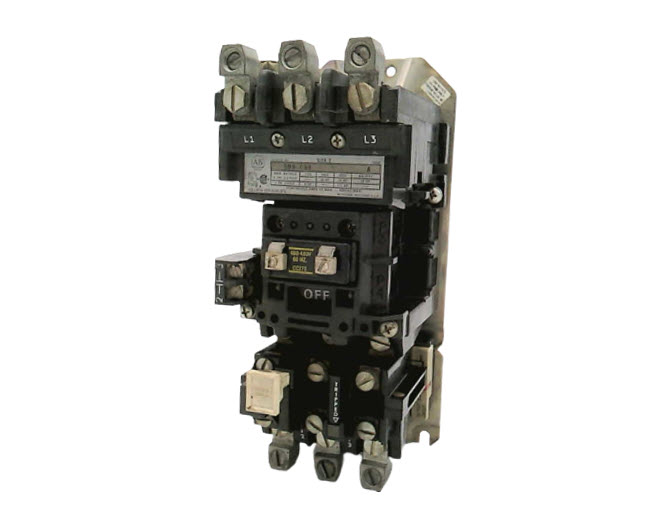

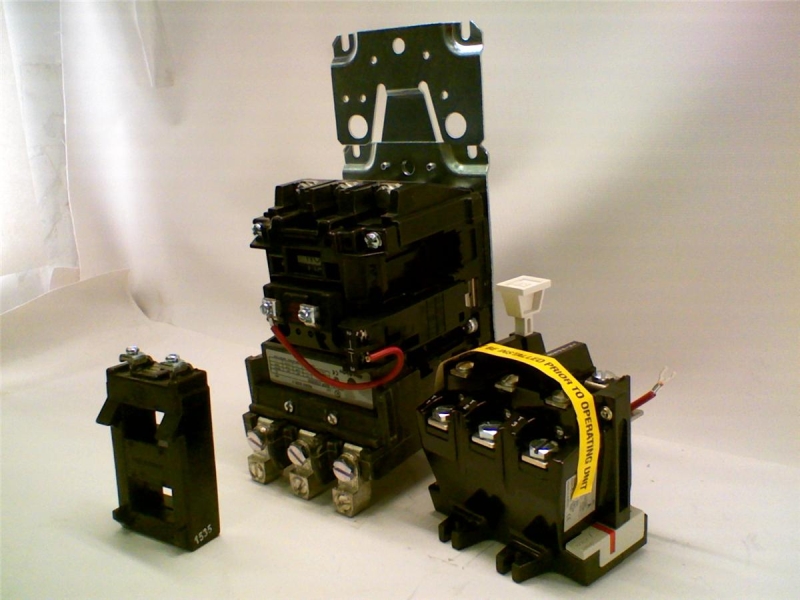

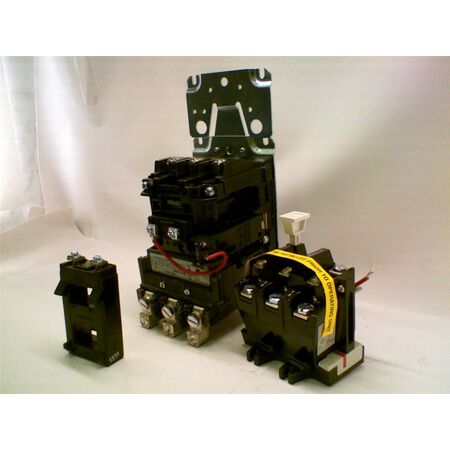

Allen-Bradley 509COB Non-Reversing 3 Phase Starter
Allen-Bradley 509COB is a non-reversing 3 phase open type starter designed for industrial motor control, rated at 45 Amp and 25 HP with top-wired contactor and NEMA Size 2.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 509COB Non-Reversing 3 Phase Starter
Brand: Allen-Bradley
SKU: 509COB
Alternatively Known As: 3 Phase Motor Starter, Non-Reversing Motor Starter, Open Type Starter, NEMA Size 2 Starter
Technical Specifications
- Voltage: 480V 60Hz / 440V 50Hz
- Current Rating: 45 Amp
- Horsepower Rating: 25 HP
- Type: Open type non-combination starter
- Contactor: Top-wired
- NEMA Size: 2
- Phase: 3 phase
- Dimensions (H x L x W): 250mm x 150mm x 200mm
- Weight: 15 kg
Key Features
- Non-reversing 3 phase starter
- Open type non-combination starter
- Top-wired contactor
- NEMA Size 2
- Rated for 45 Amp and 25 HP
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial motor control applications
- Manufacturing and production facilities
- Machinery requiring 3 phase motor starting
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 509COB Non-Reversing 3 Phase Starter is available for immediate purchase, ideal for industrial motor control applications.
