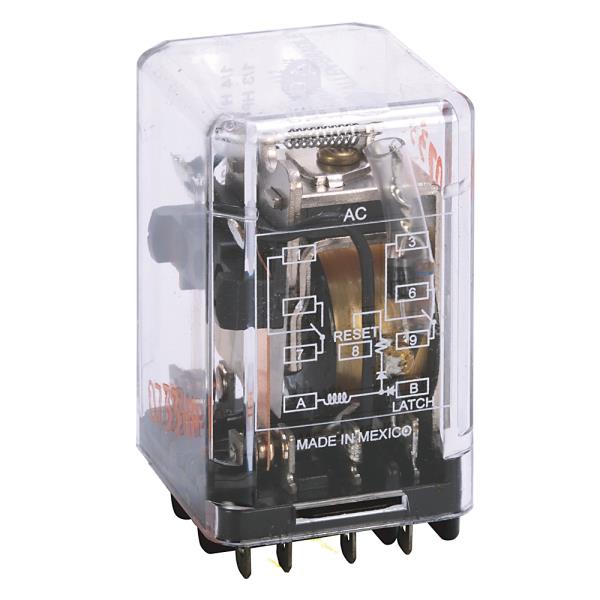

Allen-Bradley 700HJD32Z24 Magnetic Latching Relay
The Allen-Bradley 700HJD32Z24 is a magnetic latching relay with blade-style terminals, dual coil, and a 10 A contact rating, designed for reliable industrial and automation control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 700HJD32Z24 Magnetic Latching Relay
Brand: Allen-Bradley
SKU: 700HJD32Z24
Alternatively Known As: Magnetic Latching Relay, Dual Coil Relay, 2 Pole Double Throw Relay
Technical Specifications
- Contact Rating: 10 A
- Coil Voltage: 24 V DC
- Frequency: 50/60 Hz
- Terminal Type: Blade-style
- Poles: 2
- Contact Configuration: Double Throw (DPDT)
- Relay Type: Magnetic Latching
- Dimensions (H x L x W): 50mm x 60mm x 35mm
- Weight: 0.2 kg
Key Features
- Magnetic latching relay design
- Blade-style terminals for easy wiring
- Dual coil operation
- 10 A contact rating
- 2 pole double throw configuration
- Operates at 24 V DC, 50/60 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications requiring dual coil latching relays
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Magnetic latching design reduces power consumption by maintaining state without continuous coil power.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HJD32Z24 Magnetic Latching Relay is available for immediate purchase, ideal for industrial and automation control applications.
