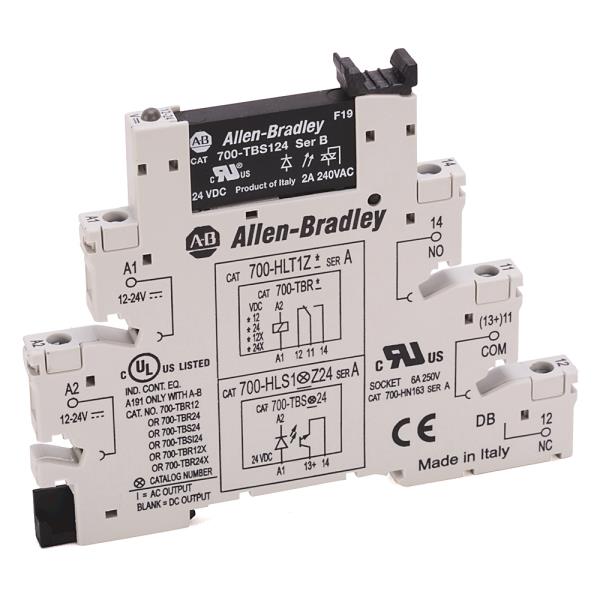

Allen-Bradley 700HLS1U1EX Terminal Block Relay with Socket and Screw Terminal Base
The Allen-Bradley 700HLS1U1EX Terminal Block Relay offers reliable solid-state relay performance with built-in coil surge protection and LED indication, designed for hazardous location applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 700HLS1U1EX Terminal Block Relay with Socket and Screw Terminal Base
Brand: Allen-Bradley
SKU: 700HLS1U1EX
Alternatively Known As: Terminal Block Relay, Solid State Relay Module, Industrial Relay with Socket, Hazardous Location Relay
Technical Specifications
- Relay Type: Terminal block relay with socket
- Terminal Type: Screw terminal base
- Indicator: Standard LED
- Coil Protection: Surge protection included
- Relay Module: Replaceable
- Output Current: 2 A solid-state relay
- Input Voltage: 110/125 V AC/DC
- Output Type: DC output
- Mounting Style: Open style, mountable
- Location Rating: Suitable for hazardous locations
- Dimensions (H x L x W): 80mm x 60mm x 30mm
- Weight: 0.3 kg
Key Features
- Terminal block relay with socket
- Screw terminal base for secure connections
- Built-in retainer clip for module stability
- Standard LED indicator
- Coil surge protection to enhance durability
- Replaceable relay module for easy maintenance
- 2 A solid-state relay output
- 110/125 V AC/DC input
- DC output
- Open style mountable design
- Suitable for hazardous locations
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with hazardous location equipment to ensure compliance and safety.
Applications
- Industrial control systems
- Automation equipment
- Hazardous location electrical installations
- Signal switching and relay control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Solid-state relay design reduces mechanical wear and extends product life
- Energy-efficient operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HLS1U1EX Terminal Block Relay is available for immediate purchase, ideal for industrial and hazardous location control applications.
