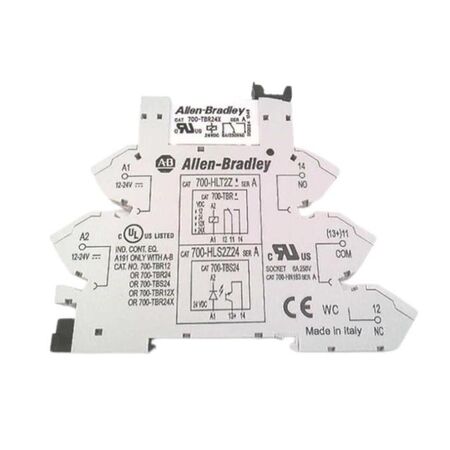

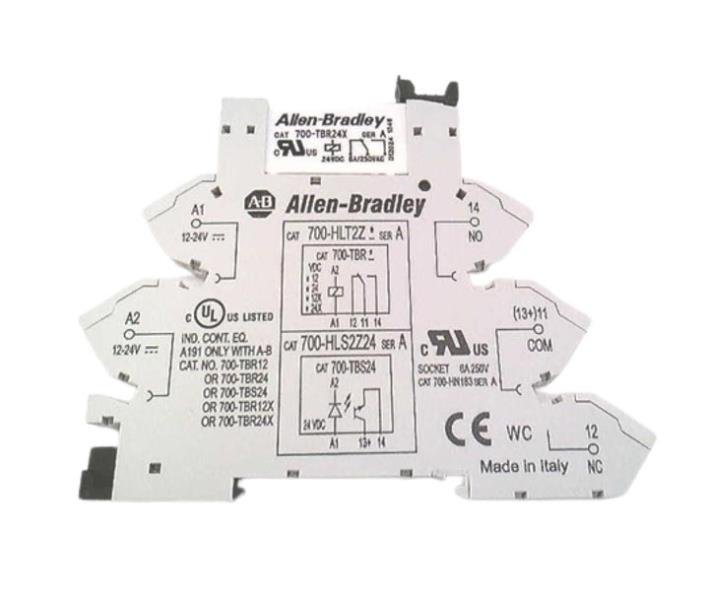

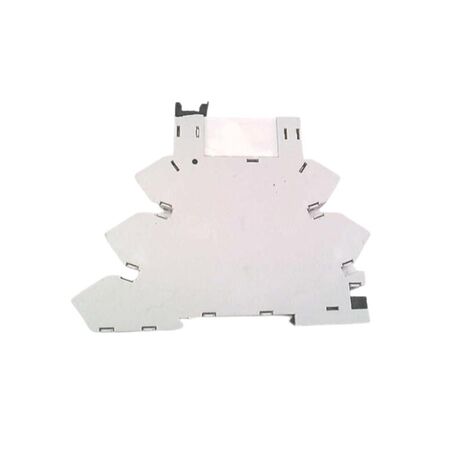

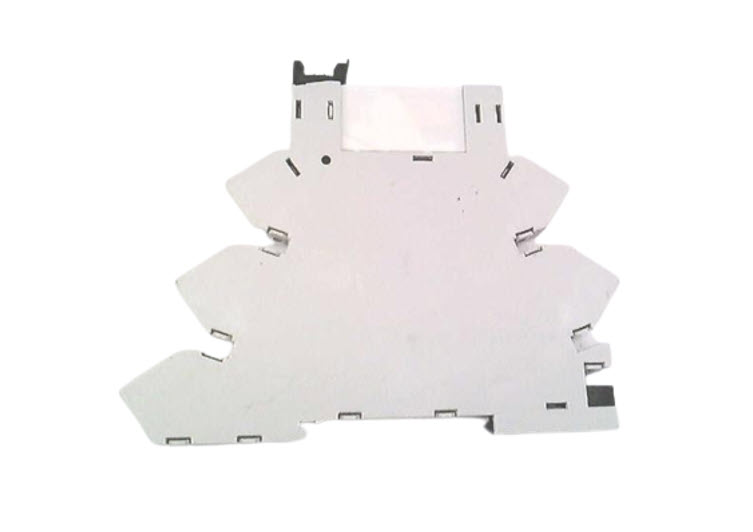

Allen-Bradley 700HLT2Z24X Terminal Block Relay with Socket
The Allen-Bradley 700HLT2Z24X Terminal Block Relay with Socket offers reliable industrial relay switching with features like spring clamp terminals, coil surge protection, and replaceable relay module, suitable for automation and control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 700HLT2Z24X Terminal Block Relay with Socket
Brand: Allen-Bradley
SKU: 700HLT2Z24X
Alternatively Known As: Terminal Block Relay, Industrial Relay Module, 24V DC Relay, SPDT Relay
Technical Specifications
- Relay Type: Terminal Block Relay with Socket
- Terminal Type: Spring Clamp
- Retainer Clip: Built-in
- LED Indicator: Standard
- Coil Protection: Surge protection included
- Relay Current Rating: 6 A
- Contact Configuration: SPDT
- Coil Voltage: 24 V DC
- Contact Material: Gold-plated
- Dimensions (H x L x W): 50mm x 60mm x 30mm
- Weight: 0.1 kg
Key Features
- Spring clamp terminals for secure wiring
- Built-in retainer clip for stable mounting
- Standard LED indicator for status monitoring
- Coil surge protection to enhance relay longevity
- Replaceable relay module for easy maintenance
- 6 A relay current rating
- SPDT (Single Pole Double Throw) configuration
- 24 V DC coil voltage
- Gold-plated contacts for reliable conductivity
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper relay operation.
Applications
- Industrial control systems
- Automation equipment
- Electrical relay switching
- Signal switching in manufacturing processes
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Coil surge protection extends product life, reducing waste
- Replaceable relay module minimizes full unit replacement
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HLT2Z24X Terminal Block Relay with Socket is available for immediate purchase, ideal for industrial and automation control applications.
