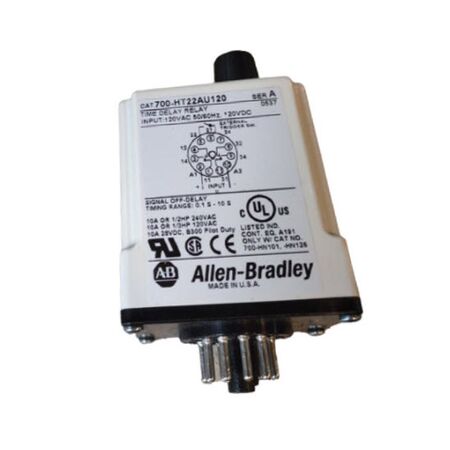

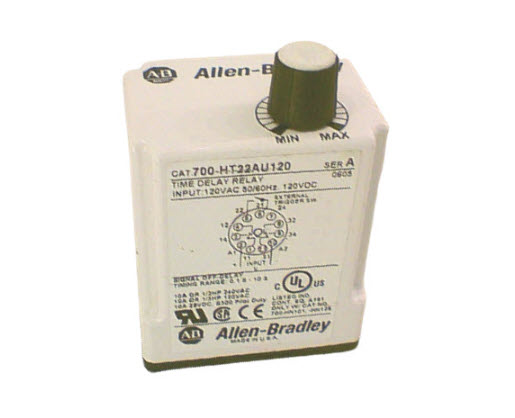

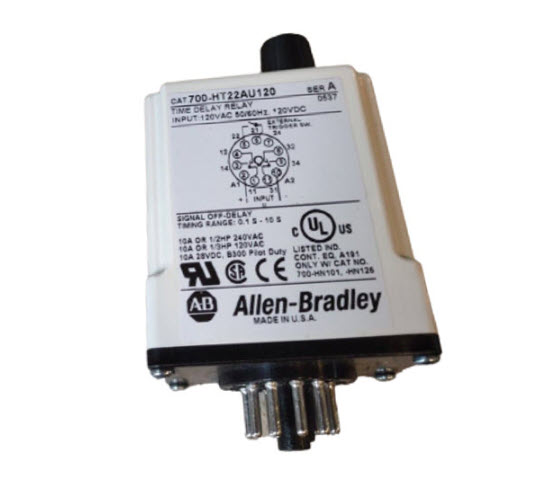

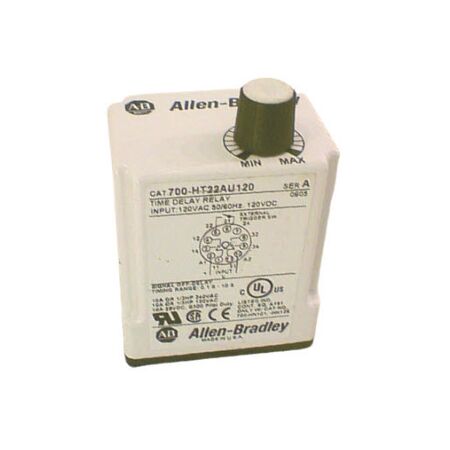

Allen-Bradley 700HT22AU120 Tube Base Timing Relay
The Allen-Bradley 700HT22AU120 Tube Base Timing Relay offers reliable off delay timing with DPDT contacts, suitable for various industrial control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 700HT22AU120 Tube Base Timing Relay
Brand: Allen-Bradley
SKU: 700HT22AU120
Alternatively Known As: Tube Base Timer Relay, Off Delay Timer Relay, DPDT Timing Relay
Technical Specifications
- Timing Range: 0.1 to 10 seconds
- Contact Type: DPDT
- Operating Voltage: 120 VAC (50/60 Hz) and 120 VDC
- Relay Type: Tube Base Timing Relay
- Function: Off Delay Timer
- Dimensions (H x L x W): 70mm x 70mm x 35mm
- Weight: 0.2 kg
Key Features
- Off delay timer functionality
- DPDT (Double Pole Double Throw) contact configuration
- Wide timing range from 0.1 to 10 seconds
- Operates on 120 VAC at 50/60 Hz and 120 VDC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Delay off timing applications in electrical circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by precise timing control reducing unnecessary power usage
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HT22AU120 Tube Base Timing Relay is available now for immediate purchase, ideal for industrial and manufacturing timing control applications.
