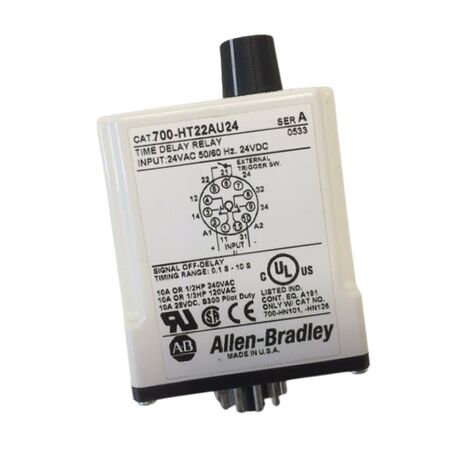

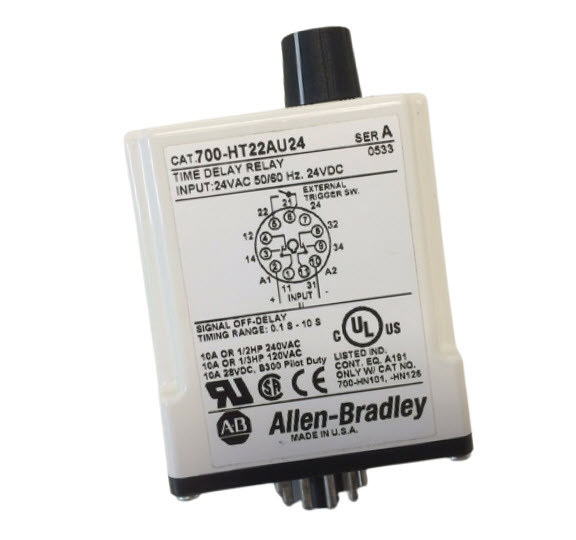

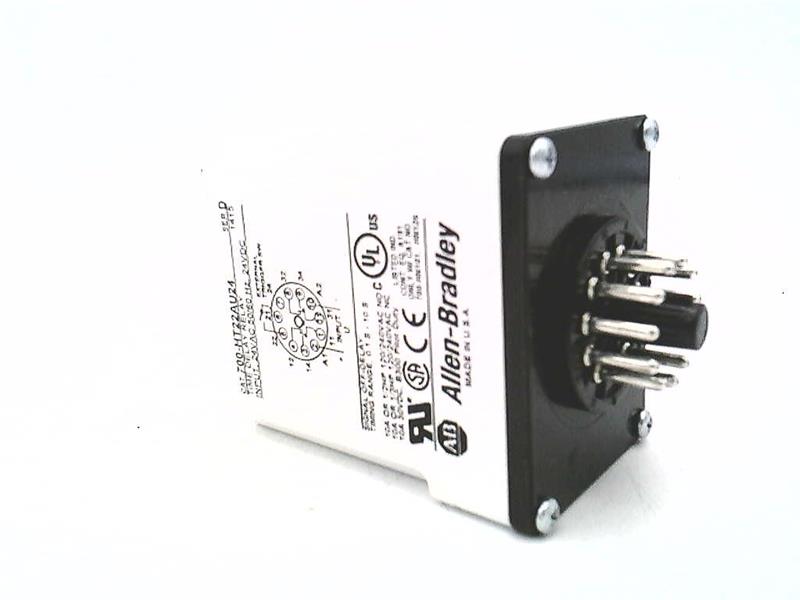

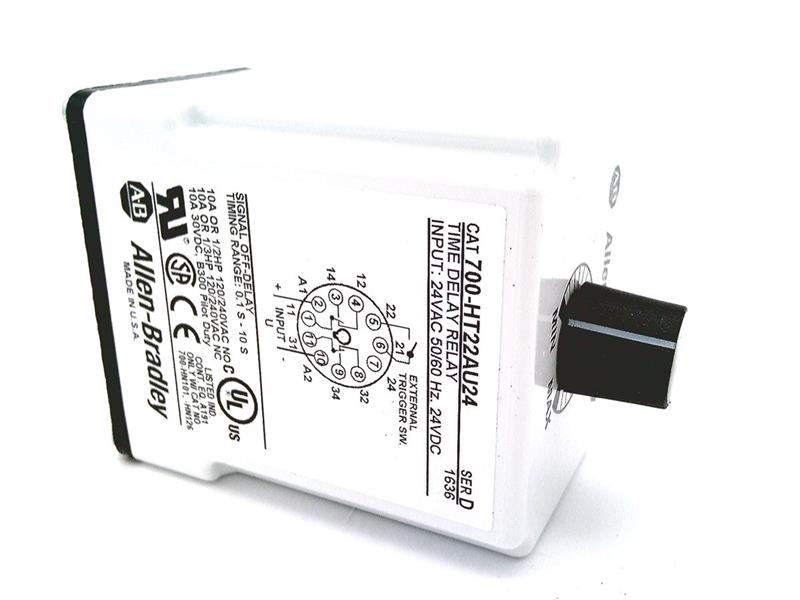

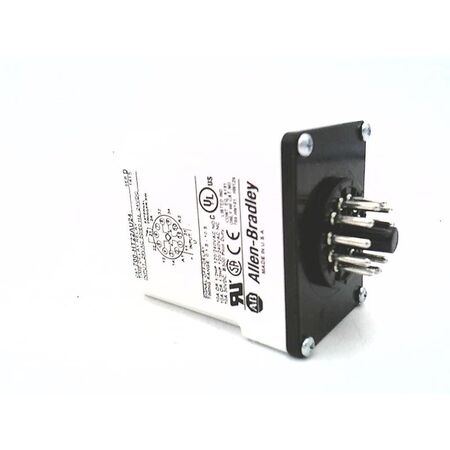

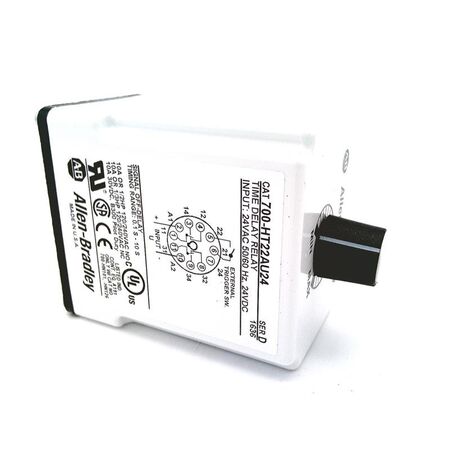

Allen-Bradley 700HT22AU24 Timing Relay
The Allen-Bradley 700HT22AU24 Timing Relay is a plug-in, pin-style socket mounted relay with DPDT contacts, designed for off-delay timing applications in industrial control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 700HT22AU24 Timing Relay
Brand: Allen-Bradley
SKU: 700HT22AU24
Alternatively Known As: Timing Relay 700HT22AU24, Off-Delay Timer Relay, DPDT Timing Relay
Technical Specifications
- Contact Configuration: DPDT
- Voltage: 24 V AC/DC
- Frequency: 50/60 Hz
- Timing Range: 0.1 to 10 seconds
- Mounting: Pin-style socket, tube base
- Function: Off-delay
- Dimensions (H x L x W): 60mm x 60mm x 35mm
- Weight: 0.1 kg
Key Features
- Plug-in design with pin-style socket mounting
- DPDT (Double Pole Double Throw) contact configuration
- Off-delay timing function
- Operates at 24 V AC/DC, 50/60 Hz
- Timing range from 0.1 to 10 seconds
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial automation control systems
- Timing control in manufacturing processes
- Electrical control panels requiring delay functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances energy efficiency by providing precise timing control to reduce unnecessary power usage.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HT22AU24 Timing Relay is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
