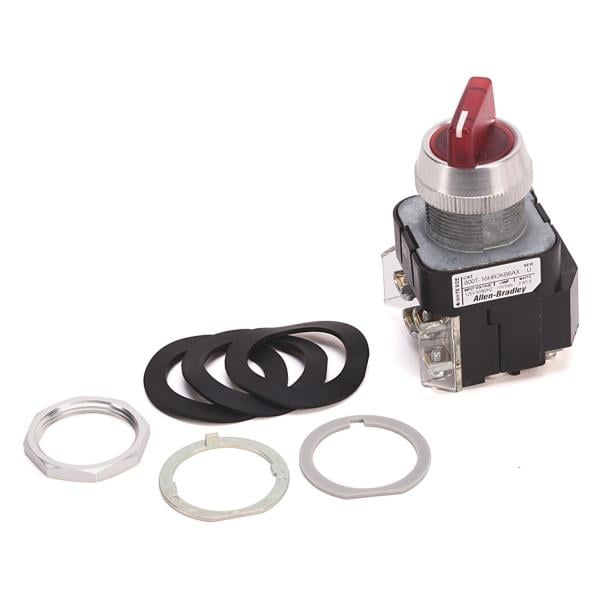

Allen-Bradley 800HC16JRA2KB7AX Illuminated Selector Switch
The Allen-Bradley 800HC16JRA2KB7AX is a 3-position illuminated selector switch with a 30.5 mm diameter, designed for industrial control applications with robust protection and safety features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800HC16JRA2KB7AX Illuminated Selector Switch
Brand: Allen-Bradley
SKU: 800HC16JRA2KB7AX
Alternatively Known As: Illuminated Selector Switch, 3-Position Selector Switch, Amber Indicator Switch
Technical Specifications
- Diameter: 30.5 mm
- Positions: 3-position maintained
- Illumination: Amber incandescent
- Voltage: 120 VAC, 50/60 Hz
- Material: Plastic
- Protection rating: Type 4/4X/13
- Terminal guards included
- Cam type: B7
- Contact configuration: First level - 1 NO 1 NC, Second level - no contacts
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter selector switch
- 3-position maintained switch with standard knob
- Illuminated amber incandescent indicator
- Plastic construction with Type 4/4X/13 protection
- Guards on terminals for safety
- B7 cam with first level 1 NO 1 NC contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring manual input
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Energy-efficient incandescent illumination for clear visibility
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HC16JRA2KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
