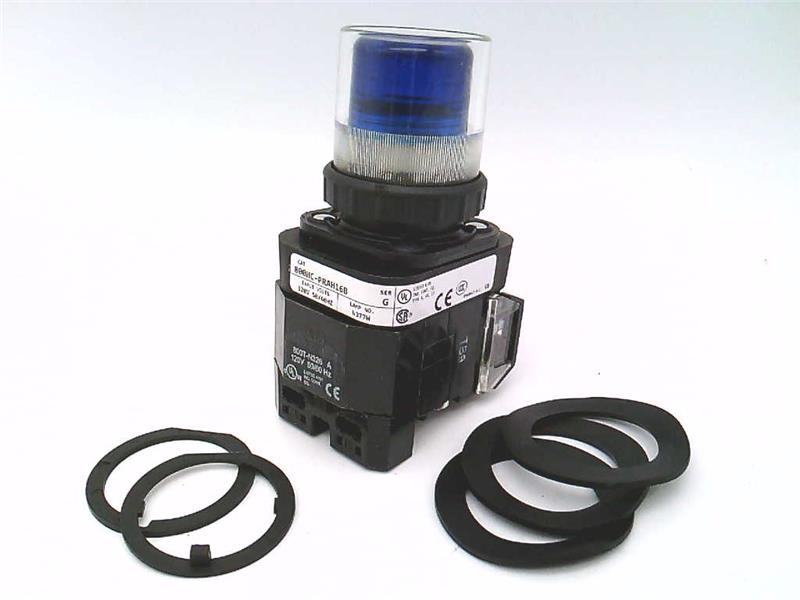

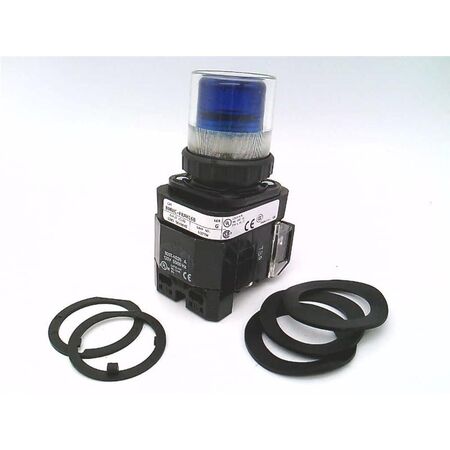

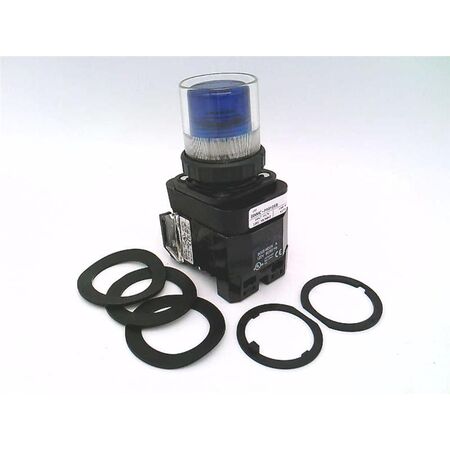

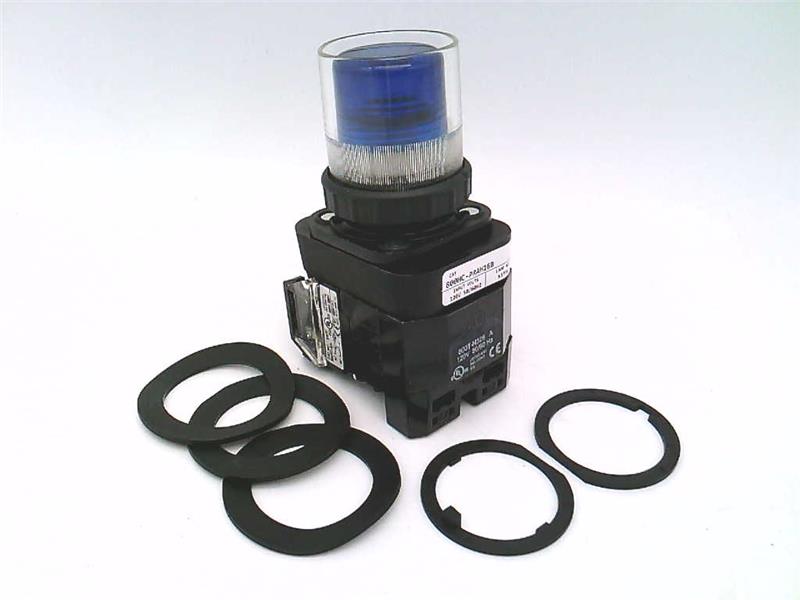

Allen-Bradley 800HCPRAH16B Illuminated Momentary Push Button
The Allen-Bradley 800HCPRAH16B is a 30.5 mm illuminated momentary push button with blue LED, designed for industrial applications with robust protection and safety features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800HCPRAH16B Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800HCPRAH16B
Alternatively Known As: Illuminated Momentary Push Button, 30.5mm Push Button Switch, Blue LED Push Button, Industrial Control Push Button
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Blue LED
- Material: Plastic
- Protection Rating: Type 4/4X/13
- Terminal Guards: Included
- Voltage: Transformer / Full Voltage - 120V AC 50/60 Hz
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with blue LED
- Plastic construction with Type 4/4X/13 protection
- Guards on terminals for safety
- Extended head with guard for protection
- Transformer/full voltage LED operation at 120V AC 50/60 Hz
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring momentary contact switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable plastic construction extends product life and reduces waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HCPRAH16B Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
