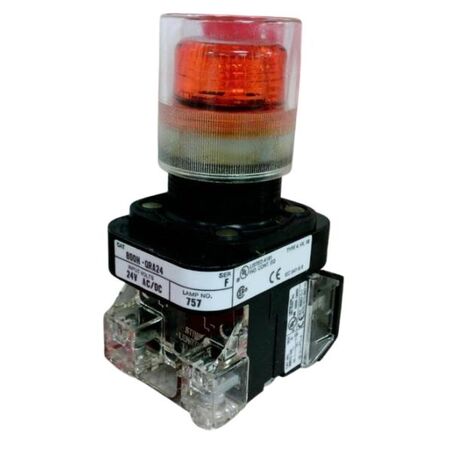

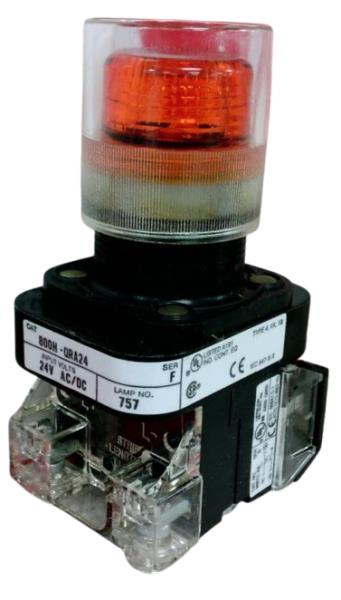

Allen-Bradley 800HCQRA24A Illuminated Momentary Push Button
The Allen-Bradley 800HCQRA24A is an illuminated momentary push button with a 30.5 mm diameter, designed for industrial applications with robust protection and safety features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800HCQRA24A Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800HCQRA24A
Alternatively Known As: Illuminated Push Button Switch, Momentary Push Button, Amber Push Button, Industrial Control Button
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Amber
- Material: Plastic
- Protection Rating: Type 4/4X/13
- Terminal Guards: Yes
- Voltage: Full voltage 24V AC/DC
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Extended Head with Guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.1 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated with amber color
- Plastic construction with Type 4/4X/13 protection
- Guards on terminals for safety
- Extended head with guard for easy operation
- Full voltage operation at 24V AC/DC
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Energy-efficient full voltage operation minimizes power consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HCQRA24A Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
