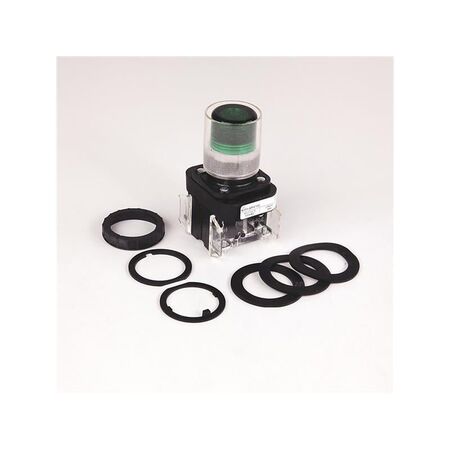

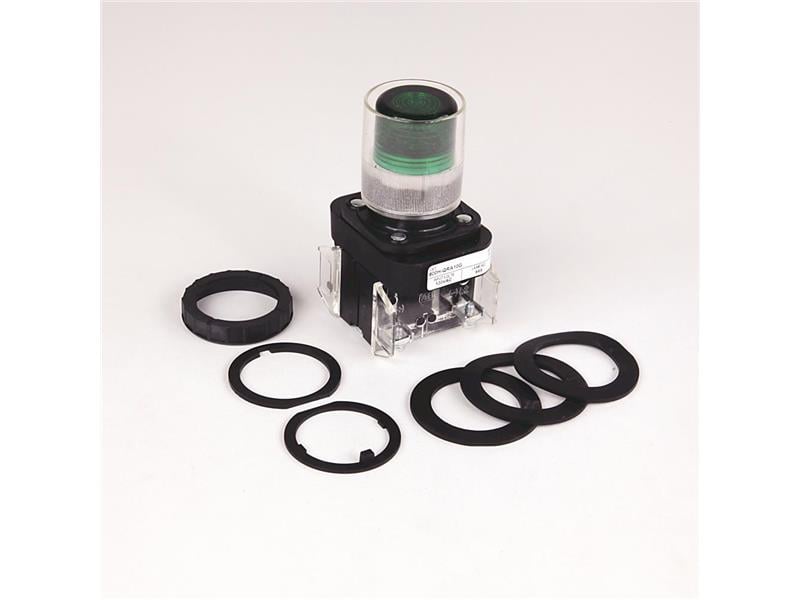

Allen-Bradley 800HCQRAH2GD1 30mm Momentary Push Button Green LED

BRAND: Allen-Bradley
SKU: 800HCQRAH2GD1
$352.80 List price: $439.60
+ −
30 Days Return Delivery Options
The Allen-Bradley 800HCQRAH2GD1 is a 30mm momentary push button with a green LED indicator, designed for industrial control applications with enhanced safety features including finger guards and an extended head guard.

Product Name/Title: Allen-Bradley 800HCQRAH2GD1 30mm Momentary Push Button Green LED

Brand: Allen-Bradley

SKU: 800HCQRAH2GD1

Alternatively Known As: Momentary Push Button Switch, 30mm Push Button, Green LED Push Button, Industrial Control Button

Technical Specifications
  • Button Diameter: 30mm
  • Contact Type: 1 Normally Open (NO) standard contact
  • Voltage Rating: 12-130V AC/DC for LED
  • LED Color: Green
  • Extended head with guard for operator safety
  • Finger guards on terminals to prevent accidental contact
  • Dimensions (H x L x W): 60mm x 40mm x 40mm
  • Weight: 0.1 kg
Key Features
  • 30mm momentary push button
  • Full voltage LED indicator (12-130V AC/DC)
  • Green LED for status indication
  • Extended head with guard for protection
  • Finger guards on terminals for safety
  • 1 Normally Open (NO) standard contact
  • No block in this position
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
  • Industrial control panels
  • Machinery operation interfaces
  • Automation systems requiring momentary push button control
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • LED indicator reduces energy consumption compared to traditional bulbs
  • Durable design reduces replacement frequency and waste
Warranty Information

Radwell 2-year warranty included. Factory warranty does not apply.

Available Now

The Allen-Bradley 800HCQRAH2GD1 30mm Momentary Push Button with Green LED is available for immediate purchase, ideal for industrial and automation control panel applications.
