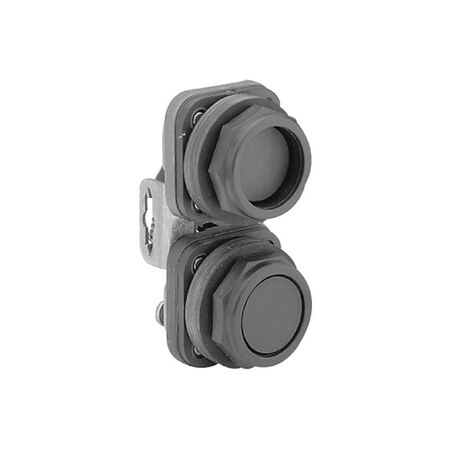

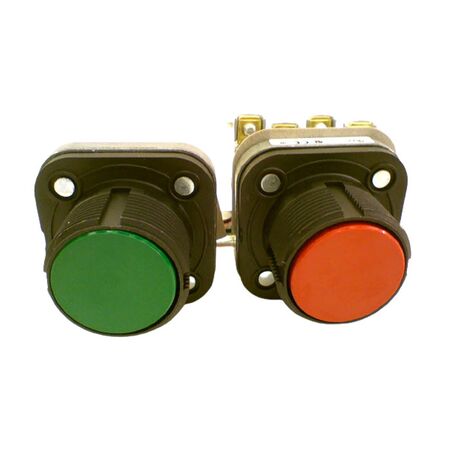

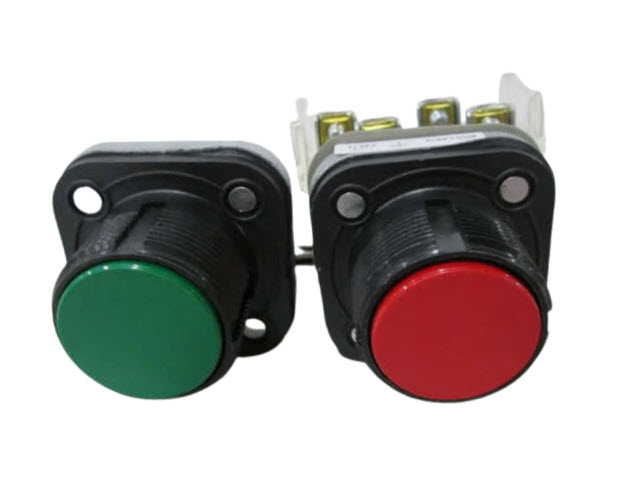

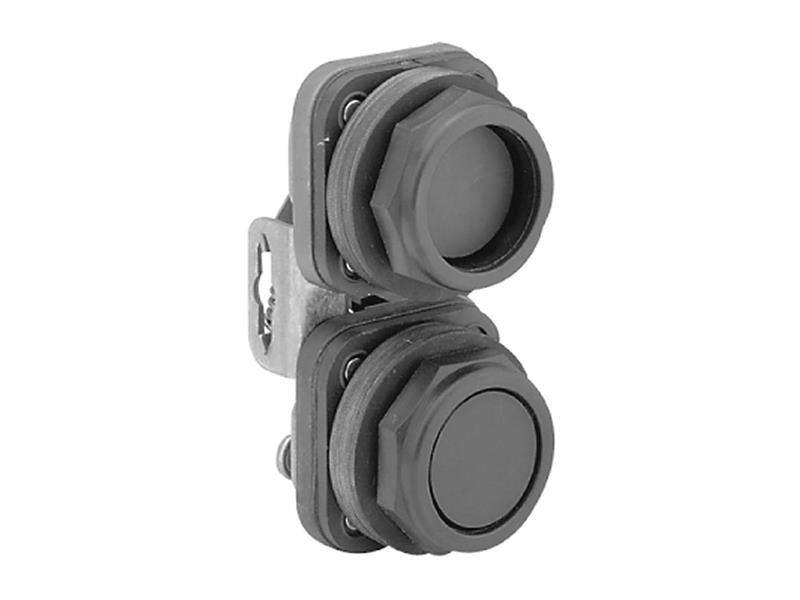

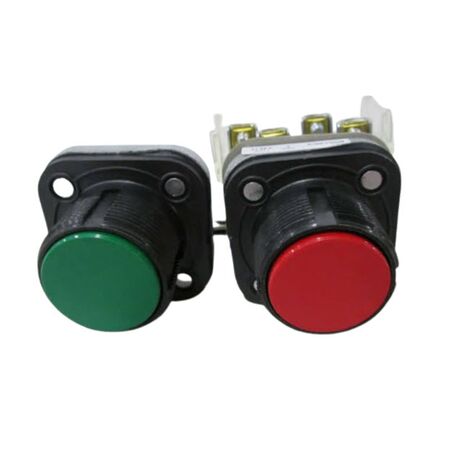

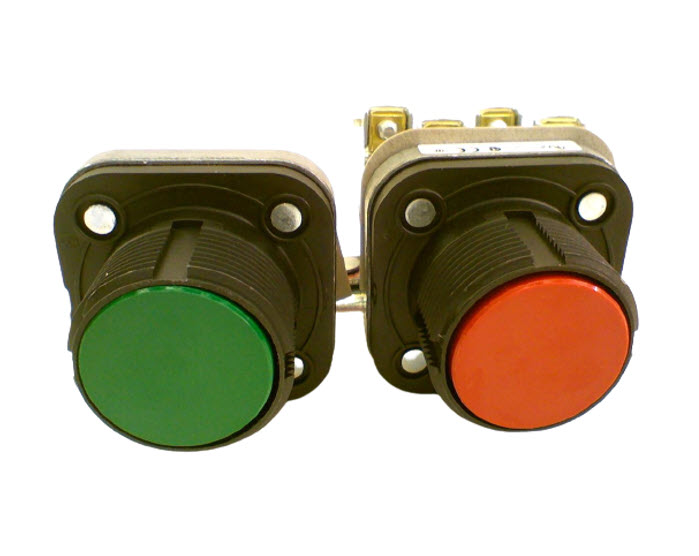

Allen-Bradley 800HCRB16A Pushbutton Switch
The Allen-Bradley 800HCRB16A is a durable 30.5 mm pushbutton switch featuring mechanically interlocked upper and lower buttons with maintained operation, suitable for industrial control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800HCRB16A Pushbutton Switch
Brand: Allen-Bradley
SKU: 800HCRB16A
Alternatively Known As: Allen-Bradley Push Button Switch, 800HCRB16A Control Button, Industrial Pushbutton
Technical Specifications
- Button Size: 30.5 mm
- Upper Button: Flush green
- Lower Button: 1-NO, 1-NC
- Extended Red Button
- Material: Plastic
- Mechanical Interlock: Yes
- Electrical Rating: 600 VAC/VDC
- Operation: Maintained
- Bootless Design
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm pushbutton size
- Upper button flush green
- Lower button 1-NO, 1-NC configuration
- Extended red button
- Plastic construction
- Mechanically interlocked
- Maintained operation
- Bootless design
- Rated for 600 VAC/VDC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation and control
- Manufacturing automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable plastic construction reduces need for frequent replacements
- Maintained design supports reliable long-term operation, minimizing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HCRB16A Pushbutton Switch is available for immediate purchase, ideal for industrial and manufacturing control panel applications.
