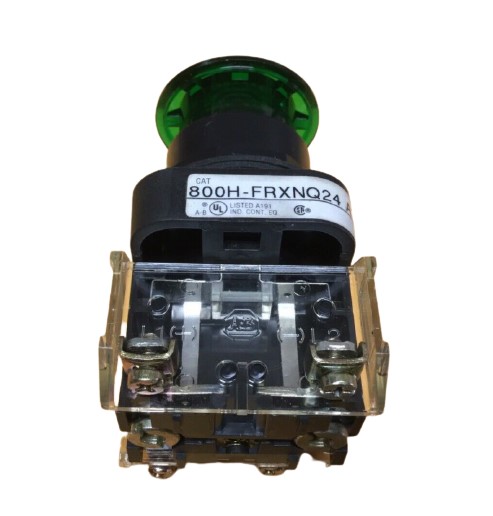

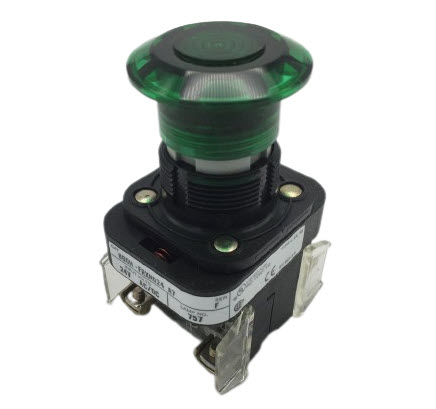

Allen-Bradley 800HFRXNQ24GA7 Illuminated Push Button
The Allen-Bradley 800HFRXNQ24GA7 is a 30.5 mm illuminated push button with a 3-position push-pull mushroom head, designed for industrial control applications with Type 4/4X/13 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800HFRXNQ24GA7 Illuminated Push Button
Brand: Allen-Bradley
SKU: 800HFRXNQ24GA7
Alternatively Known As: Illuminated Push Button Switch, Mushroom Head Push-Pull Button, 3-Position Push Button
Technical Specifications
- Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-momentary)
- Illumination: Incandescent, full voltage 24V AC/DC
- Material: Plastic mushroom head
- Color: Green
- Contact Configuration: 1 NCLB, 1 NC
- Protection Rating: Type 4/4X/13
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter push button
- 3-position push-pull operation
- Illuminated plastic mushroom head
- Type 4/4X/13 rated for harsh environments
- Momentary-maintained-momentary switching
- Incandescent illumination at full voltage 24V AC/DC
- Green color indication
- Standard contact configuration: 1 NCLB, 1 NC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable Type 4/4X/13 rating reduces need for frequent replacements in harsh environments
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HFRXNQ24GA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control applications.
