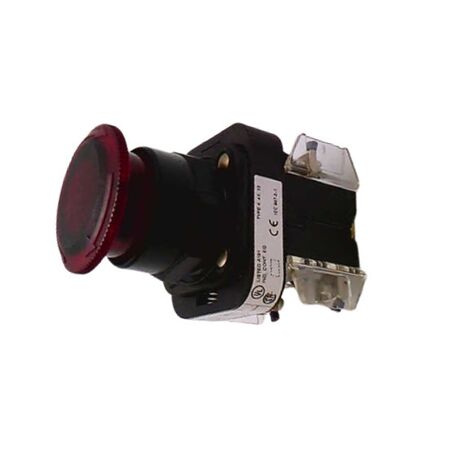

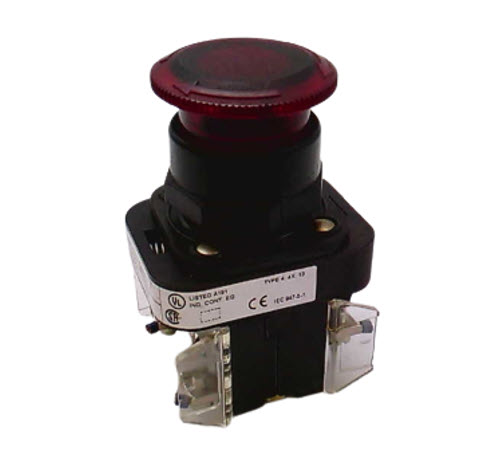

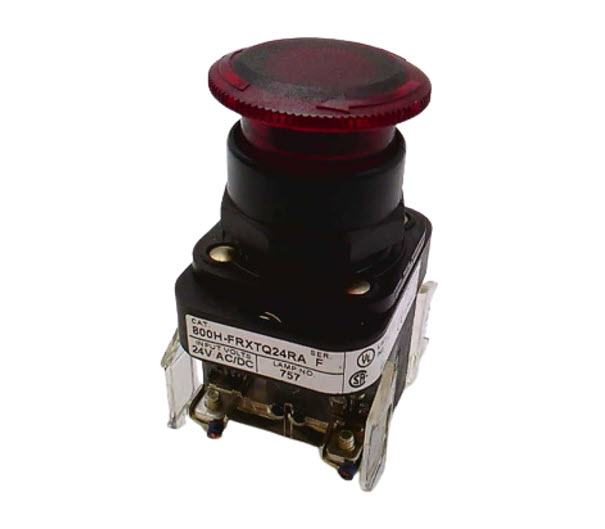

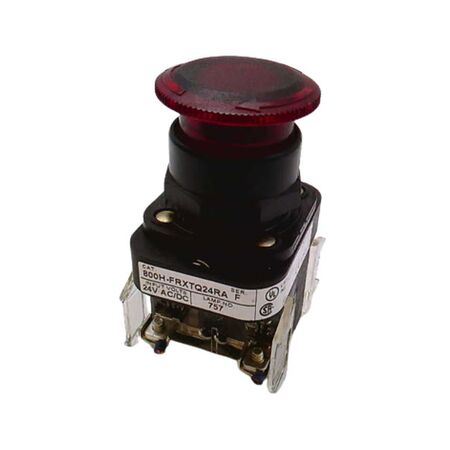

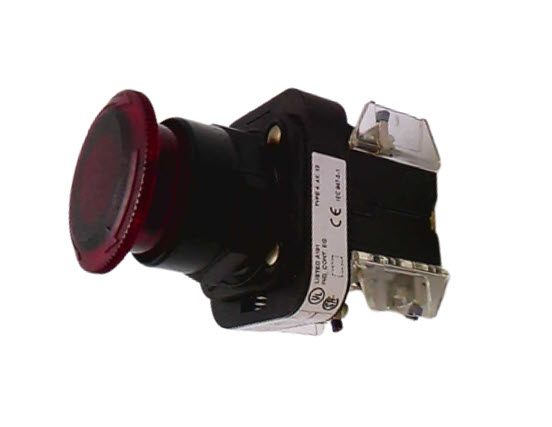

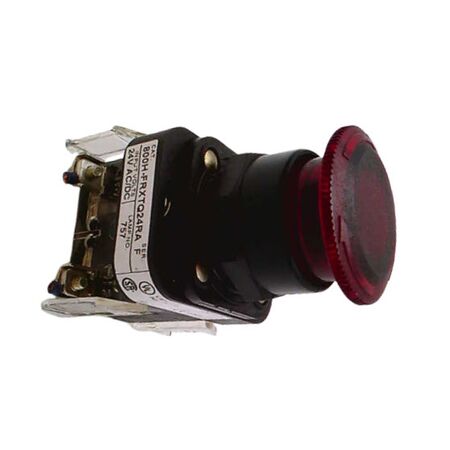

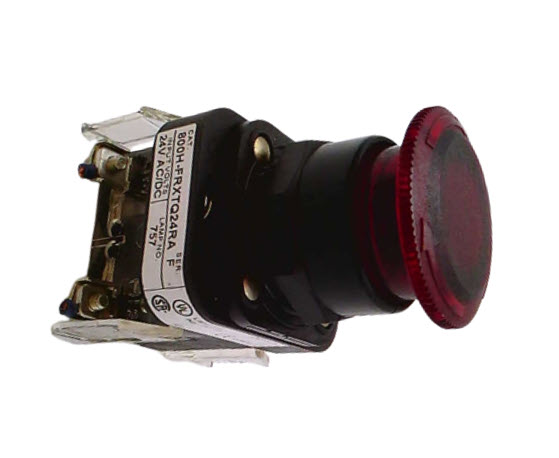

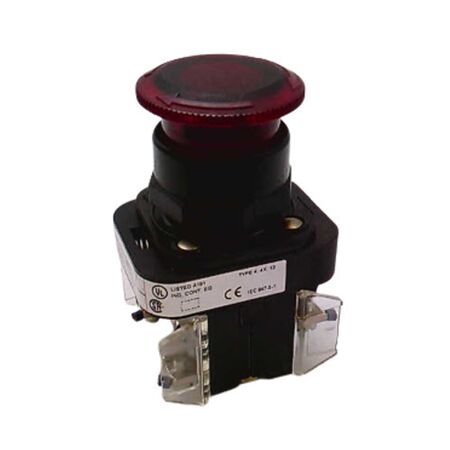

Allen-Bradley 800HFRXTQ24RA Illuminated Push Button
The Allen-Bradley 800HFRXTQ24RA is a durable illuminated push button with a 2-position push-pull mushroom head, suitable for industrial control applications and rated for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800HFRXTQ24RA Illuminated Push Button
Brand: Allen-Bradley
SKU: 800HFRXTQ24RA
Alternatively Known As: Illuminated Push Button Switch, Mushroom Head Push Button, 2-Position Push-Pull Button
Technical Specifications
- Type: Push button, 2-position push-pull
- Head size: 30.5 mm mushroom
- Illumination: Incandescent lamp
- Material: Plastic
- Enclosure rating: Type 4/4X/13
- Operation: Push-pull/twist
- Voltage: Full voltage 24V AC/DC
- Contact configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 2-position push-pull operation
- 30.5 mm mushroom head
- Illuminated with incandescent lamp
- Plastic construction
- Type 4/4X/13 rated for harsh environments
- No guards included
- Push-pull/twist mechanism
- Full voltage 24V AC/DC operation
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation
- Emergency stop and start functions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power incandescent illumination for minimal energy use
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800HFRXTQ24RA Illuminated Push Button is available for immediate purchase, ideal for industrial and commercial control panel applications.
