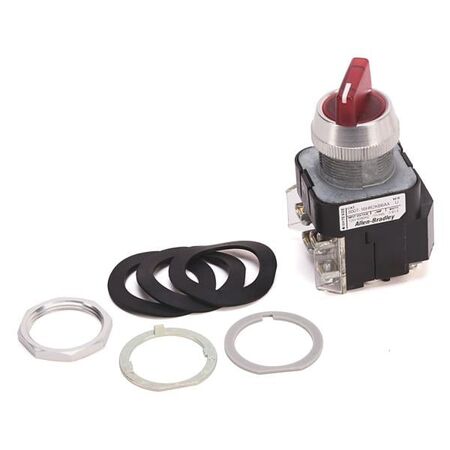

Allen-Bradley 800TC12JR91KB7AX Illuminated Selector Switch
The Allen-Bradley 800TC12JR91KB7AX is a durable illuminated selector switch with a 3-position knob, metal construction, and Type 4/13 protection, ideal for industrial control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TC12JR91KB7AX Illuminated Selector Switch
Brand: Allen-Bradley
SKU: 800TC12JR91KB7AX
Alternatively Known As: Illuminated selector switch, 3-position selector switch, industrial selector switch, Allen-Bradley selector switch
Technical Specifications
- Diameter: 30.5 mm
- Positions: 3-position
- Type: Knob/lever with spring return from both sides
- Illumination: Red incandescent
- Material: Metal
- Protection rating: Type 4/13
- Terminal guards included
- Voltage: 12V AC/DC
- Cam type: B7
- Contact configuration: First level - 1 NO 1 NC, Second level - no contacts
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter selector switch
- 3-position knob/lever type with spring return from both sides
- Illuminated with red incandescent light
- Metal construction with Type 4/13 protection
- Guards on terminals for safety
- B7 cam with first level 1 NO 1 NC contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Low voltage 12V AC/DC operation reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TC12JR91KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
