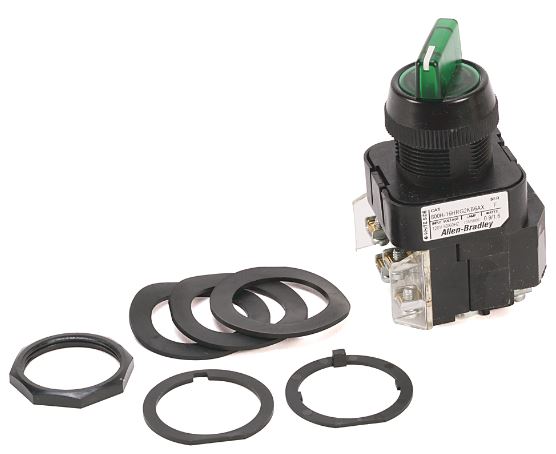

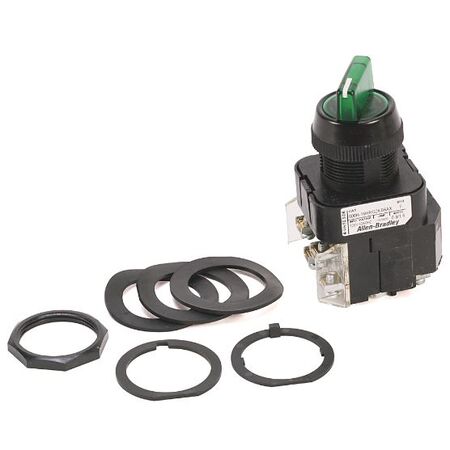

Allen-Bradley 800TC16JG20KB7AX Illuminated Selector Switch
The Allen-Bradley 800TC16JG20KB7AX is a durable illuminated selector switch with a 3-position knob/lever, designed for industrial control applications with metal construction and terminal guards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TC16JG20KB7AX Illuminated Selector Switch
Brand: Allen-Bradley
SKU: 800TC16JG20KB7AX
Alternatively Known As: Illuminated selector switch, 3-position selector switch, Allen-Bradley selector switch, industrial selector switch
Technical Specifications
- Selector switch diameter: 30.5 mm
- 3-position knob/lever type with spring return from both sides
- Illumination: Green incandescent
- Electrical rating: 120 VAC, 50/60 Hz
- Contact configuration: First level - 1 NO 1 NC, Second level - NO contact
- Type 4/13 enclosure rating
- Guards on terminals for enhanced safety
- B7 cam type
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 30.5 mm diameter selector switch
- 3-position knob/lever type with spring return from both sides
- Illuminated with green incandescent light
- Metal construction with Type 4/13 rating
- Guards on terminals for safety
- 120 VAC, 50/60 Hz operation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Energy-efficient incandescent illumination for clear visibility
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TC16JG20KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
