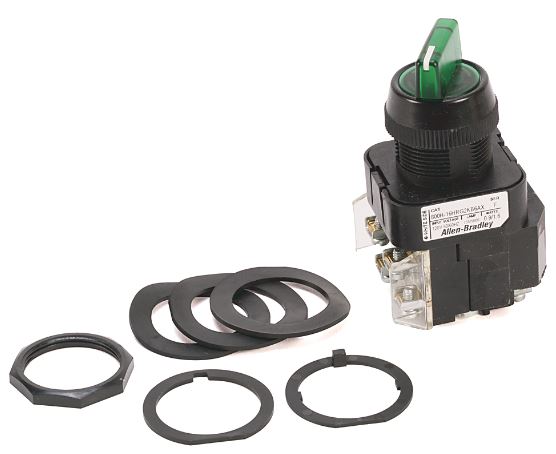

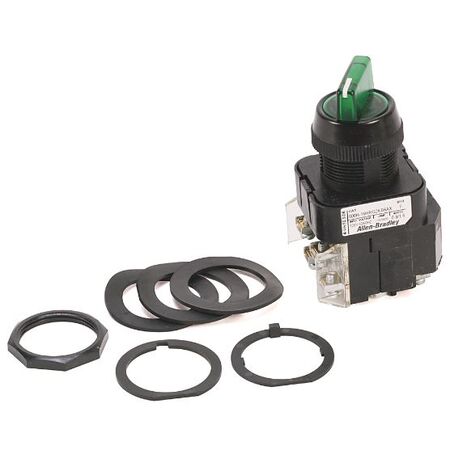

Allen-Bradley 800TC16JGH19KB7AX Illuminated Selector Switch
The Allen-Bradley 800TC16JGH19KB7AX is a durable illuminated selector switch with a 3-position knob/lever, metal construction, and safety guards, ideal for industrial control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TC16JGH19KB7AX Illuminated Selector Switch
Brand: Allen-Bradley
SKU: 800TC16JGH19KB7AX
Alternatively Known As: Illuminated selector switch, 3-position selector switch, Allen-Bradley selector switch, industrial selector switch
Technical Specifications
- Selector switch diameter: 30.5 mm
- Positions: 3
- Type: Knob/lever with spring return from right
- Illumination: Green LED
- Material: Metal
- Protection rating: Type 4/13
- Terminal guards included
- Voltage: 120 VAC
- Frequency: 50/60 Hz
- Cam type: B7
- Contact configuration: First level - 1 NO 1 NC, second level - no contacts
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 30.5 mm diameter selector switch
- 3-position knob/lever type with spring return from right
- Illuminated green LED indicator
- Metal construction with Type 4/13 protection
- Guards on terminals for safety
- 120 VAC, 50/60 Hz operation
- B7 cam with first level 1 NO 1 NC contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TC16JGH19KB7AX Illuminated Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
