Trade Discount 20%

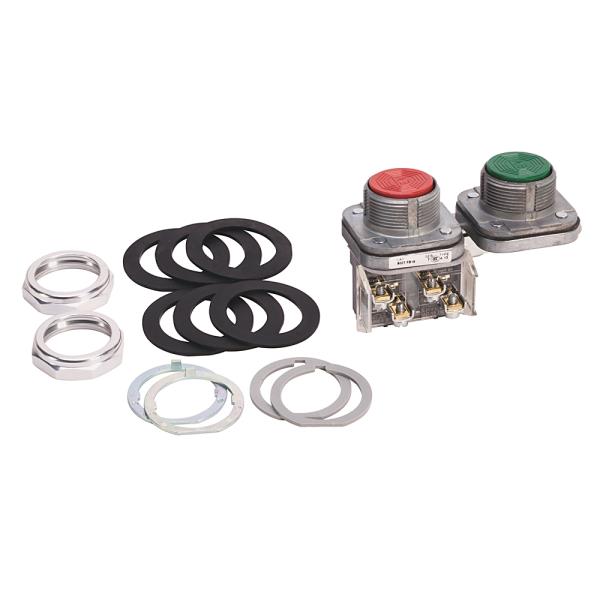

Allen-Bradley 800TCFB16A Double Push Button 30mm
The Allen-Bradley 800TCFB16A is a 30mm double push button with maintained operation, designed for industrial control applications featuring safety finger guards and standard contact configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TCFB16A Double Push Button 30mm
Brand: Allen-Bradley
SKU: 800TCFB16A
Alternatively Known As: Double Push Button Switch, 30mm Control Button, Allen-Bradley Control Switch
Technical Specifications
- Button Size: 30mm
- Orientation: Vertical
- Operation: Maintained/Maintained
- Contact Configuration: 1 NO, 1 NC
- Color: Green (top or left), Red (bottom or right)
- Finger Guards: Present on terminals
- No blocking in positions 2 and 3
- Dimensions (H x L x W): 60mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Double push button with vertical orientation
- Extended flush design
- Maintained/maintained operation
- Green button on top or left, red button on bottom or right
- Finger guards on terminals for safety
- 1 Normally Open (NO) and 1 Normally Closed (NC) standard contacts
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Manufacturing automation systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCFB16A Double Push Button is available for immediate purchase, ideal for industrial and manufacturing control applications.
