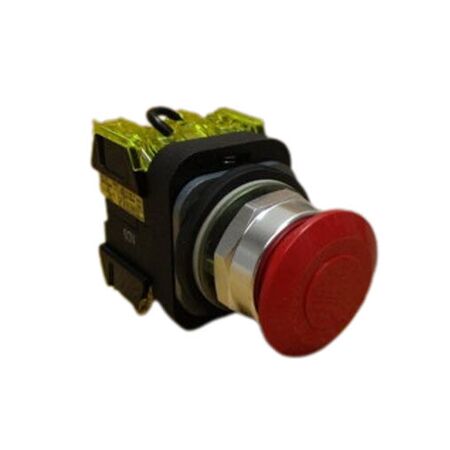

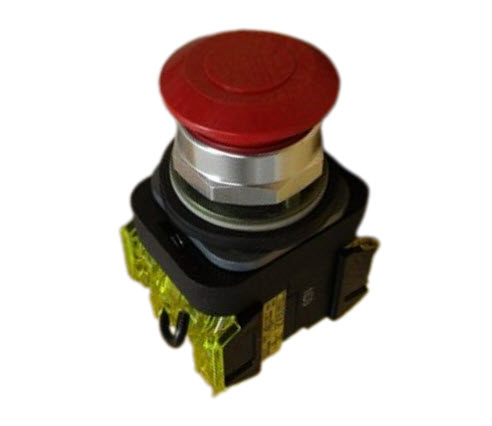

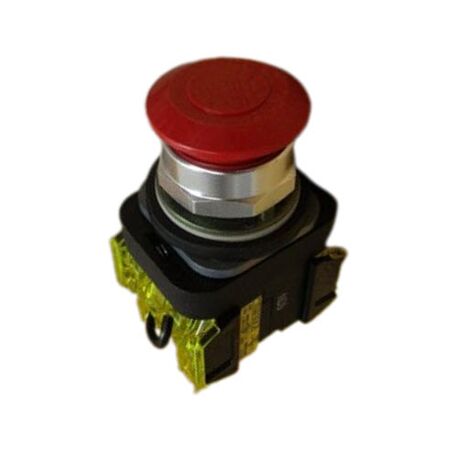

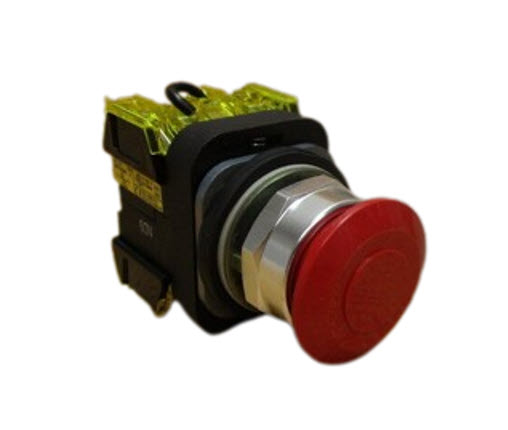

Allen-Bradley 800TCFX6A Push Button 30.5mm Mushroom Head

BRAND: Allen-Bradley
SKU: 800TCFX6A
$293.90 List price: $366.20
+ −
30 Days Return Delivery Options
The Allen-Bradley 800TCFX6A is a durable 30.5 mm mushroom head push button with push-pull and push-pull/twist release, designed for industrial control applications with Type 4/13 protection.

Product Name/Title: Allen-Bradley 800TCFX6A Push Button 30.5mm Mushroom Head

Brand: Allen-Bradley

SKU: 800TCFX6A

Alternatively Known As: Allen-Bradley Push Button 800TCFX6A, Mushroom Head Push Button, Industrial Control Push Button

Technical Specifications
  • Button Diameter: 30.5 mm
  • Operation: 2-position push-pull and push-pull/twist release
  • Illumination: Non-illuminated
  • Material: Metal
  • Protection Rating: Type 4/13
  • Terminal Guards: Included
  • Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
  • Head Style: Mushroom
  • Dimensions (H x L x W): 40mm x 50mm x 40mm
  • Weight: 0.2 kg
Key Features
  • 30.5 mm mushroom head push button
  • 2-position push-pull and push-pull/twist release
  • Non-illuminated metal construction
  • Type 4/13 rated for harsh environments
  • Guards on terminals for safety
  • Standard configuration: 1 NO (Normally Open) and 1 NC (Normally Closed)
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or technician to ensure compliance with safety standards and proper operation.
Applications
  • Industrial control panels
  • Machinery operation and safety
  • Manufacturing automation systems
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Robust metal construction ensures long product life reducing waste
  • Type 4/13 rating protects against dust and water ingress, minimizing replacement frequency
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 800TCFX6A Push Button is available for immediate purchase, ideal for industrial and manufacturing control panel applications.
