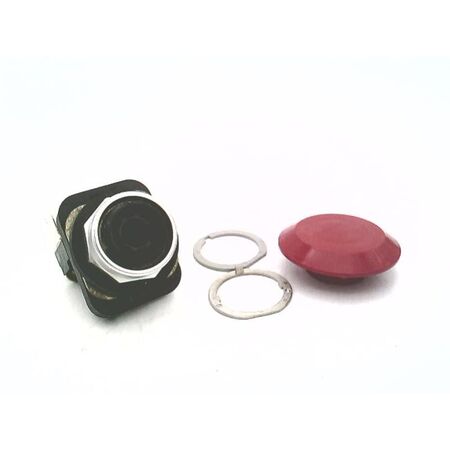

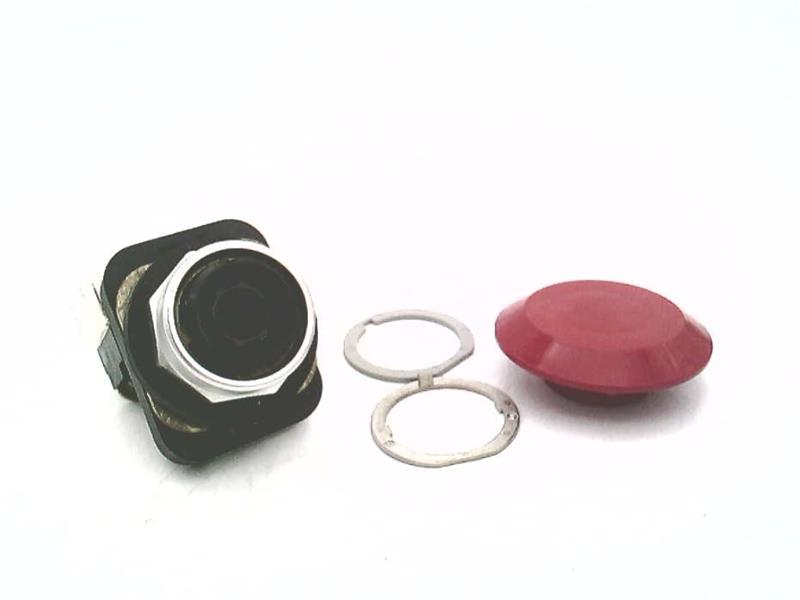

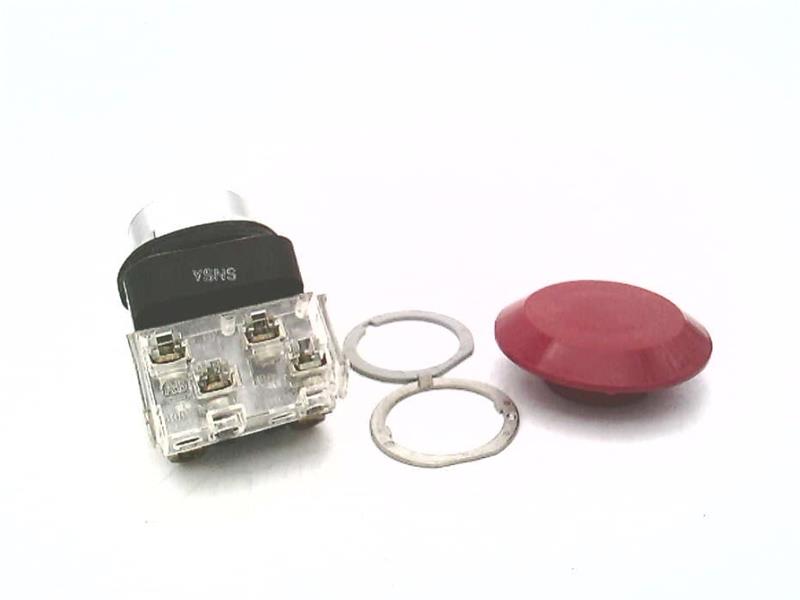

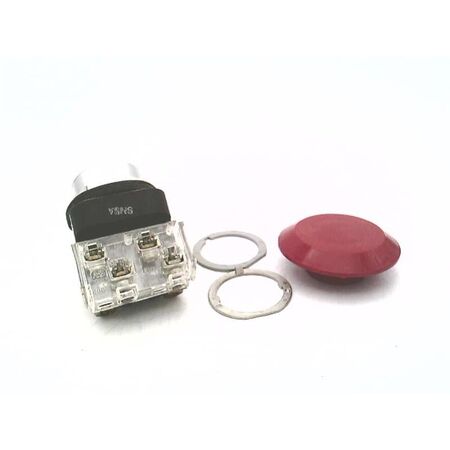

Allen-Bradley 800TCFXJ6A Push Button 30.5mm Red Jumbo Mushroom Head

BRAND: Allen-Bradley
SKU: 800TCFXJ6A
$318.30 List price: $396.70
+ −
30 Days Return Delivery Options
The Allen-Bradley 800TCFXJ6A is a robust 30.5 mm red jumbo mushroom head push button with push-pull and push-pull/twist release, designed for industrial control applications with Type 4/13 protection.

Product Name/Title: Allen-Bradley 800TCFXJ6A Push Button 30.5mm Red Jumbo Mushroom Head

Brand: Allen-Bradley

SKU: 800TCFXJ6A

Alternatively Known As: Emergency Stop Button, Industrial Push Button Switch, Mushroom Head Push Button

Technical Specifications
  • Button Diameter: 30.5 mm
  • Operation: 2-position push-pull and push-pull/twist release
  • Illumination: Non-illuminated
  • Material: Metal
  • Enclosure Rating: Type 4/13
  • Terminal Guards: Included
  • Contact Configuration: 1 NO, 1 NC
  • Dimensions (H x L x W): 40mm x 50mm x 40mm
  • Weight: 0.3 kg
Key Features
  • 30.5 mm jumbo mushroom head for easy operation
  • 2-position push-pull and push-pull/twist release mechanism
  • Non-illuminated metal construction
  • Type 4/13 enclosure rating for protection against dust and water
  • Guards on terminals for safety
  • Standard contact configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper integration into control systems.
Applications
  • Industrial control panels
  • Machinery operation and safety systems
  • Emergency stop and start functions
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable metal construction reduces need for frequent replacements
  • Type 4/13 rating ensures long service life in harsh environments, reducing waste
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 800TCFXJ6A Push Button is available for immediate purchase, ideal for industrial and machinery safety applications.
