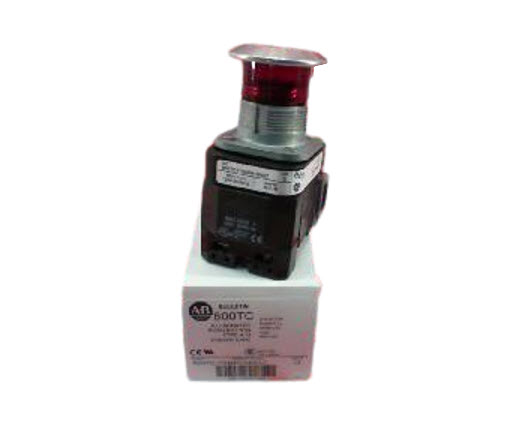

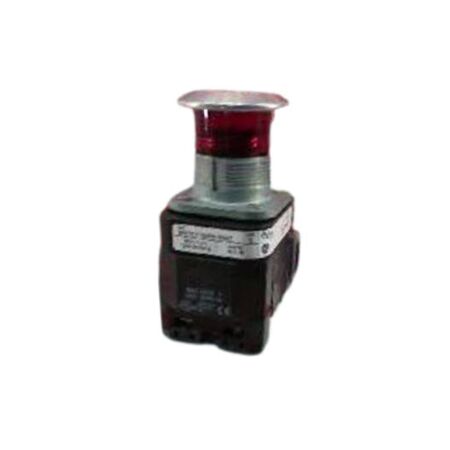

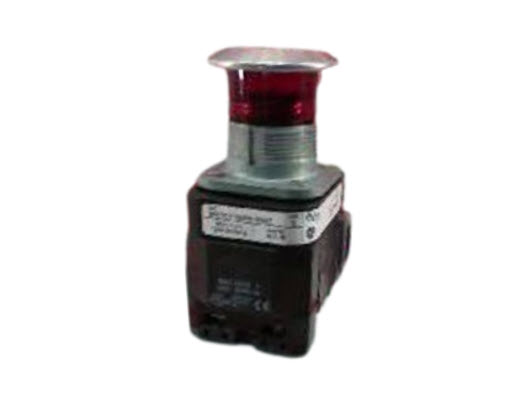

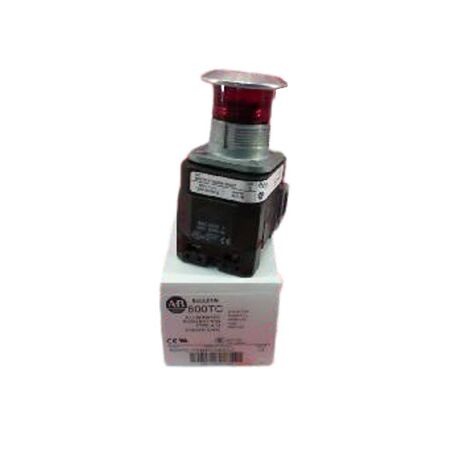

Allen-Bradley 800TCFXMPH16RA7 Illuminated Push Button
The Allen-Bradley 800TCFXMPH16RA7 is a durable illuminated push-pull mushroom head button designed for industrial control applications, featuring a 3-position operation and LED illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TCFXMPH16RA7 Illuminated Push Button
Brand: Allen-Bradley
SKU: 800TCFXMPH16RA7
Alternatively Known As: Illuminated Push Button Switch, Mushroom Head Push-Pull Button, 3-Position Push Button
Technical Specifications
- Button Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-maintained)
- Illumination: LED with transformer, 120V AC 50/60 Hz
- Material: Metal with Type 4/13 terminal guards
- Contact Configuration: 1 Normally Closed (NC), 1 Normally Open (NO)
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.3 kg
Key Features
- 30.5 mm mushroom head push-pull button
- 3-position operation: momentary-maintained-maintained
- Illuminated with LED transformer at 120V AC 50/60 Hz
- Metal construction with Type 4/13 guards on terminals
- Standard contact configuration: 1 Normally Closed (NC) and 1 Normally Open (NO)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control panels
- Machinery operation interfaces
- Automation systems requiring push-pull control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCFXMPH16RA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control applications.
