Allen-Bradley 800TCFXQH2AA1 Pushbutton Switch

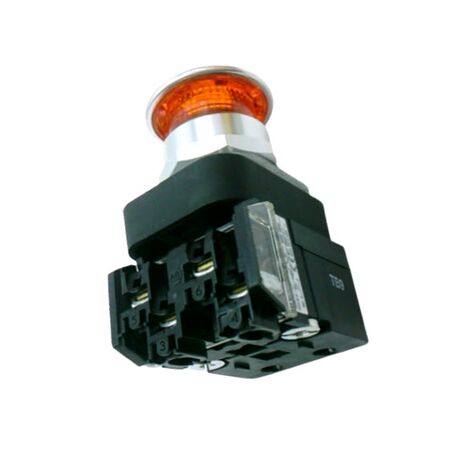

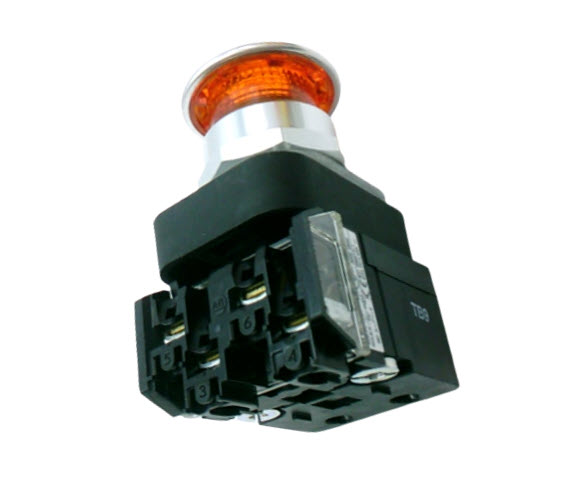

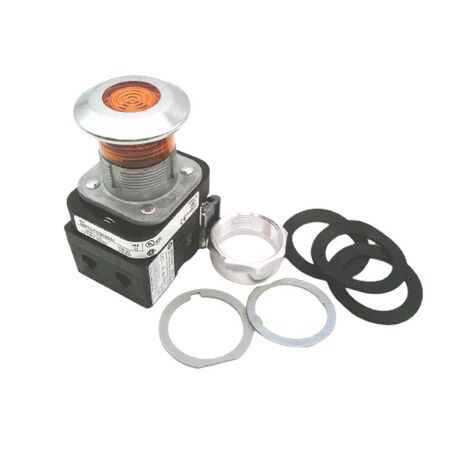

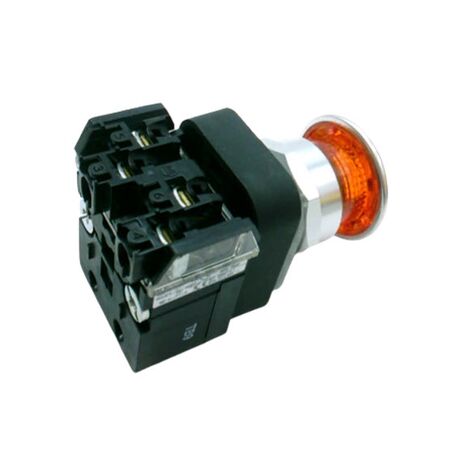

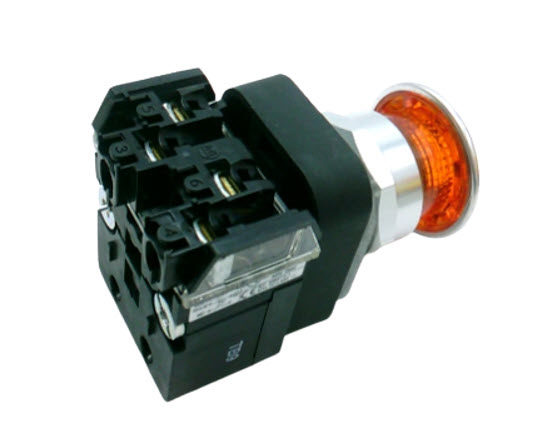

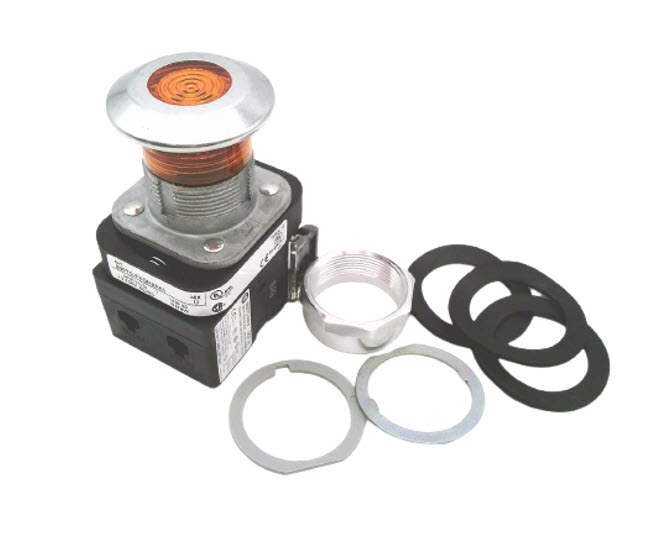

The Allen-Bradley 800TCFXQH2AA1 is a 30 mm push-pull mushroom cap pushbutton switch with amber LED lamp, designed for industrial control applications with safety finger guards and full voltage type operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TCFXQH2AA1 Pushbutton Switch
Brand: Allen-Bradley
SKU: 800TCFXQH2AA1
Alternatively Known As: Pushbutton switch, Mushroom pushbutton, 30mm push-pull switch, Allen-Bradley pushbutton
Technical Specifications
- Voltage: 12-30V AC/DC
- Contact configuration: 1 NCLB (Normally Closed Long Break), 1 NO (Normally Open)
- Cap type: Standard mushroom cap without legend
- Operation: Push-pull, 2 position
- Terminal safety: Finger guards on terminals
- Lamp type: LED
- Release type: No twist release
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.1 kg
Key Features
- 30 mm push-pull mushroom cap design
- No twist release mechanism
- 2 position operation
- Amber LED lamp included
- Finger guards on terminals for safety
- Full voltage type
- 1 NCLB and 1 NO standard contacts
- No legend on cap
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration into control systems.
Applications
- Industrial control panels
- Machinery operation controls
- Automation systems requiring push-pull switch functionality
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- LED lamp provides energy-efficient indication
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCFXQH2AA1 Pushbutton Switch is available for immediate purchase, ideal for industrial and automation control applications.
