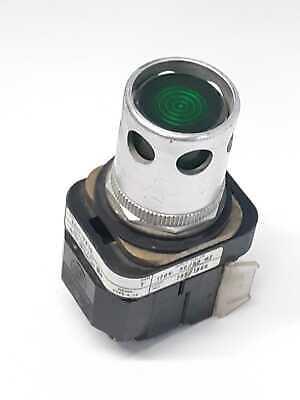

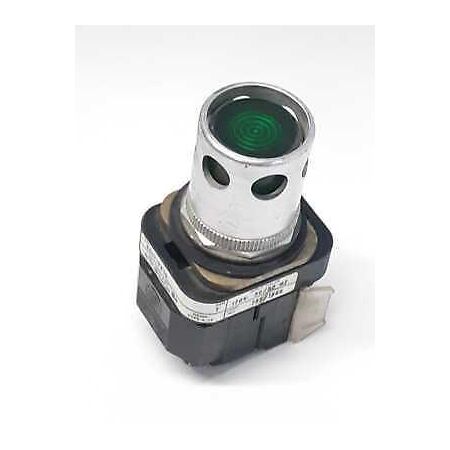

Allen-Bradley 800TCPA46R Illuminated Momentary Push Button

BRAND: Allen-Bradley
SKU: 800TCPA46R
$384.80 List price: $479.50
+ −
30 Days Return Delivery Options
The Allen-Bradley 800TCPA46R is a durable illuminated momentary push button with metal construction and Type 4/13 protection, ideal for industrial control applications.

Product Name/Title: Allen-Bradley 800TCPA46R Illuminated Momentary Push Button

Brand: Allen-Bradley

SKU: 800TCPA46R

Alternatively Known As: Illuminated Push Button Switch, Momentary Push Button, Industrial Control Button

Technical Specifications
  • Button Diameter: 30.5 mm
  • Contact Type: Momentary, 1 Normally Open (NO) and 1 Normally Closed (NC)
  • Illumination: Transformer/full voltage incandescent
  • Voltage Rating: Transformer - 480 V AC 50/60 Hz
  • Protection Rating: Type 4/13
  • Terminal Guards: Included
  • Extended Head with Guard: Yes
  • Dimensions (H x L x W): 40mm x 50mm x 40mm
  • Weight: 0.2 kg
Key Features
  • 30.5 mm illuminated momentary contact push button
  • Metal construction with Type 4/13 protection
  • Guards on terminals for safety
  • Extended head with guard for protection
  • Transformer/full voltage incandescent illumination
  • Suitable for transformer - 480 V AC 50/60 Hz
  • Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
  • Industrial control panels
  • Machinery operation control
  • Automation systems requiring momentary contact switches
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable metal construction reduces replacement frequency and waste
  • Energy-efficient incandescent illumination for clear visibility
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 800TCPA46R Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
