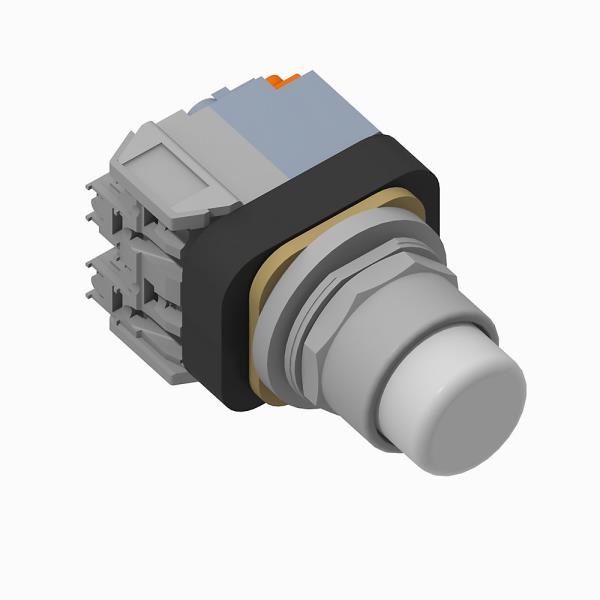

Allen-Bradley 800TCPB16W Illuminated Momentary Push Button
The Allen-Bradley 800TCPB16W is a durable, illuminated momentary push button designed for industrial applications, featuring metal construction and Type 4/13 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TCPB16W Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800TCPB16W
Alternatively Known As: Illuminated Momentary Push Button, Allen-Bradley Push Button Switch, 800TCPB16W Push Button
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Transformer/full voltage incandescent
- Voltage Rating: 120V AC 50/60 Hz
- Contact Configuration: 1 Normally Open (NO), 1 Normally Closed (NC)
- Protection Rating: Type 4/13
- Terminal Guards: Included
- Extended Head: Without guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm diameter push button
- Momentary contact operation
- Illuminated button for visibility
- Metal construction for durability
- Type 4/13 rated for protection against dust and water
- Guards on terminals for safety
- Extended head without guard
- Transformer/full voltage incandescent illumination
- Transformer rated for 120V AC 50/60 Hz
- Standard contact configuration: 1 NO 1 NC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial control panels
- Machinery operation
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Illumination reduces energy consumption compared to non-illuminated alternatives
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCPB16W Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
