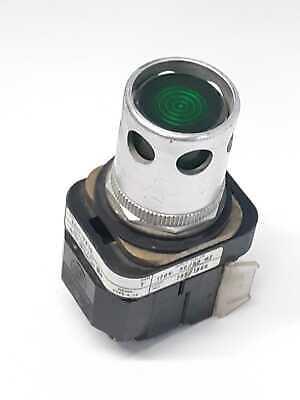

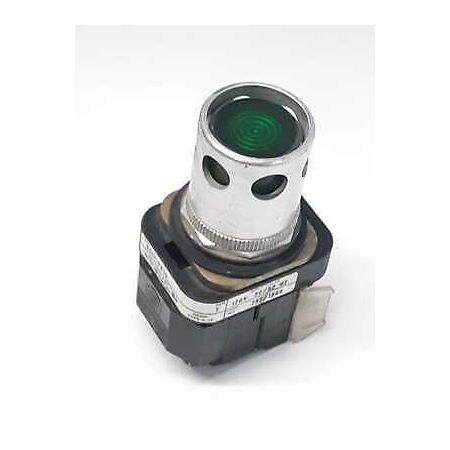

Allen-Bradley 800TCPB46 Illuminated Momentary Push Button
The Allen-Bradley 800TCPB46 is a 30.5 mm illuminated momentary push button designed for industrial applications, featuring metal construction, terminal guards, and compatibility with transformer/full voltage incandescent systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TCPB46 Illuminated Momentary Push Button
Brand: Allen-Bradley
SKU: 800TCPB46
Alternatively Known As: Momentary Push Button Switch, Illuminated Push Button, Industrial Control Button
Technical Specifications
- Button Diameter: 30.5 mm
- Contact Type: Momentary
- Illumination: Incandescent
- Material: Metal
- Protection Rating: Type 4/13
- Voltage Rating: Transformer - 480 V AC 50/60 Hz
- Contact Configuration: 1 NO, 1 NC
- Terminal Guards: Included
- Extended Head: Available without guard
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm momentary contact push button
- Illuminated metal button suitable for Type 4/13 environments
- Guards on terminals for safety
- Extended head without guard option
- Designed for transformer/full voltage incandescent operation
- Rated for transformer - 480 V AC 50/60 Hz
- Standard contacts configuration: 1 NO (Normally Open), 1 NC (Normally Closed)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring momentary contact switches
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Energy-efficient incandescent illumination for clear visibility
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCPB46 Illuminated Momentary Push Button is available for immediate purchase, ideal for industrial and automation control applications.
