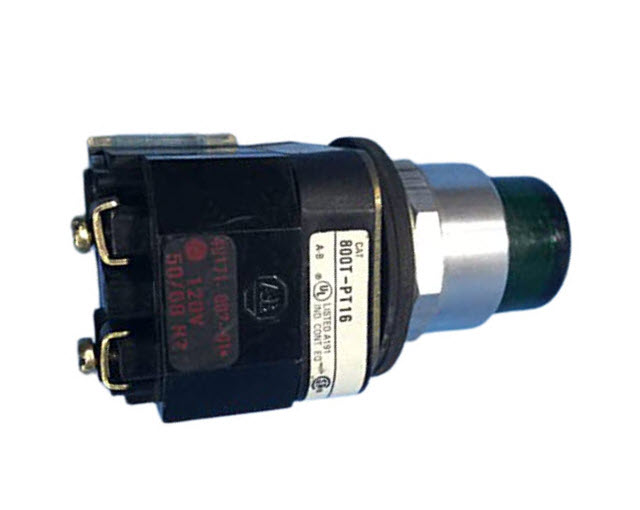

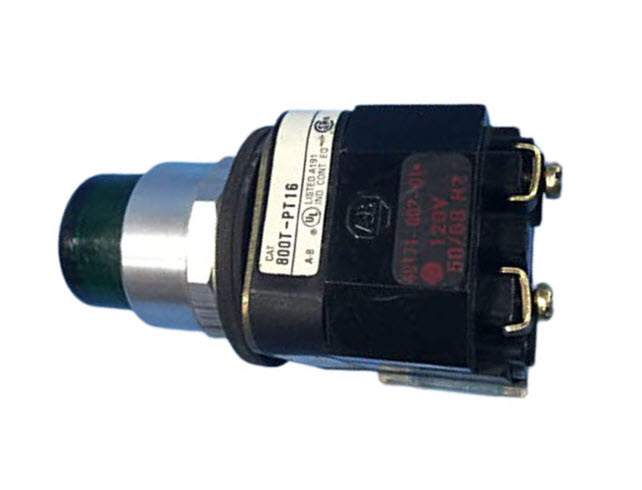

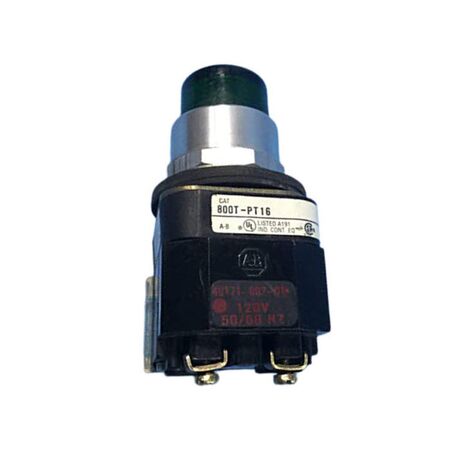

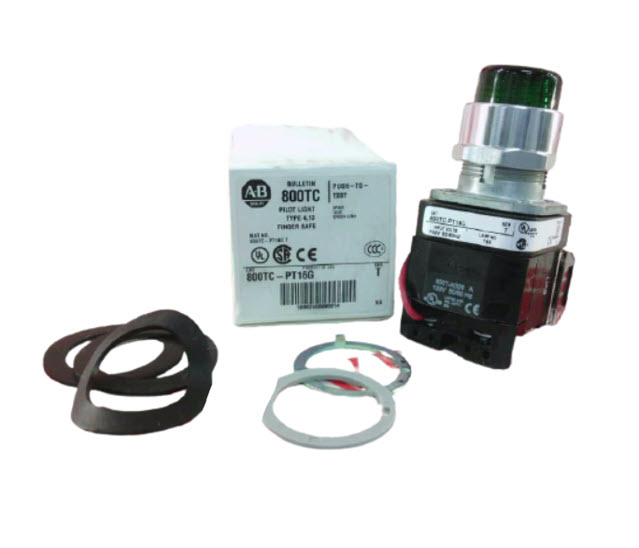

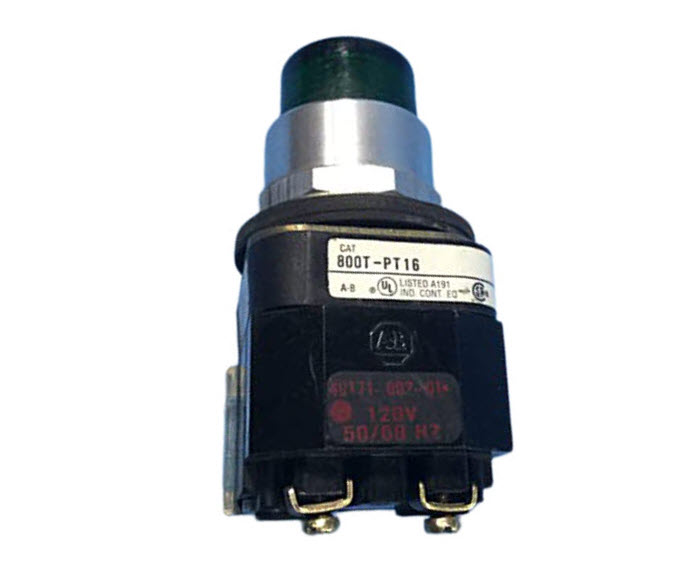

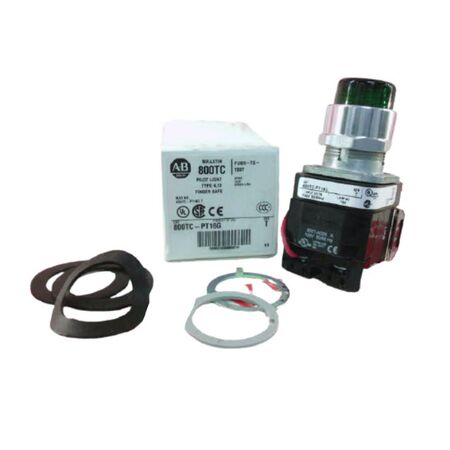

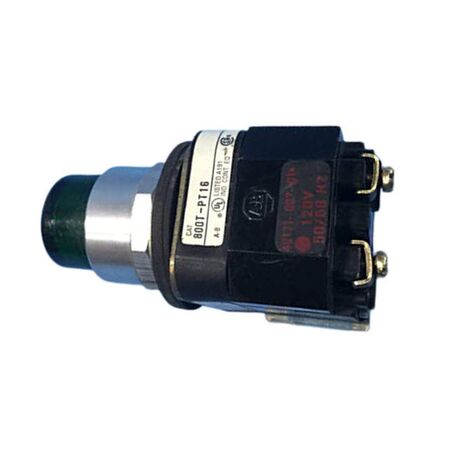

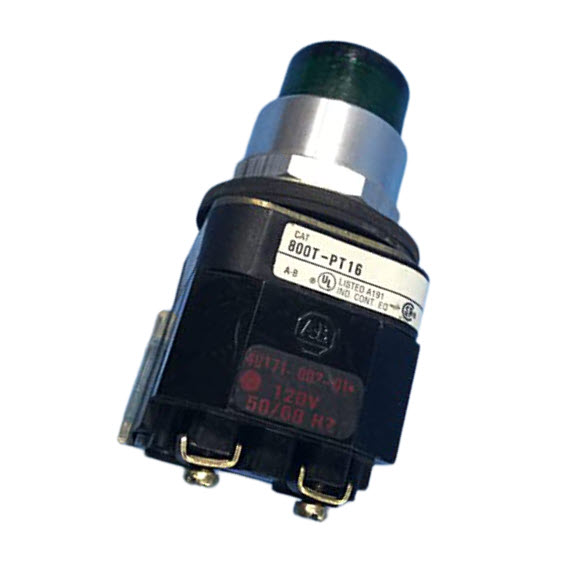

Allen-Bradley 800TCPT16G Push-to-Test Button
The Allen-Bradley 800TCPT16G Push-to-Test Button is a durable metal push button with lamp test feature, suitable for industrial control panels with Type 4/13 protection and 120V AC transformer operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TCPT16G Push-to-Test Button
Brand: Allen-Bradley
SKU: 800TCPT16G
Alternatively Known As: Push-to-Test Indicator Button, Test Lamp Button, Industrial Push Button Switch
Technical Specifications
- Button Diameter: 30.5 mm
- Material: Metal
- Enclosure Type: Type 4/13
- Terminal Guards: Included
- Lamp Type: Incandescent
- Transformer Voltage: 120V AC 50/60 Hz
- Contact Configuration: 1 NO, 1 NC
- Lamp Test: Push-to-Test
- Dimensions (H x L x W): 35mm x 40mm x 35mm
- Weight: 0.2 kg
Key Features
- Push-to-test button with lamp test functionality
- Metal construction for durability
- Type 4/13 enclosure rating for protection against dust and water
- Guards on terminals for safety
- Incandescent lamp with transformer for 120V AC 50/60 Hz operation
- Standard contact configuration: 1 Normally Open (NO) and 1 Normally Closed (NC)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection of transformer and terminals.
Applications
- Industrial control panels
- Machinery operation and safety systems
- Electrical control systems requiring push-to-test functionality
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces replacement frequency and waste
- Transformer-based lamp reduces energy consumption compared to non-tested indicators
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TCPT16G Push-to-Test Button is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
