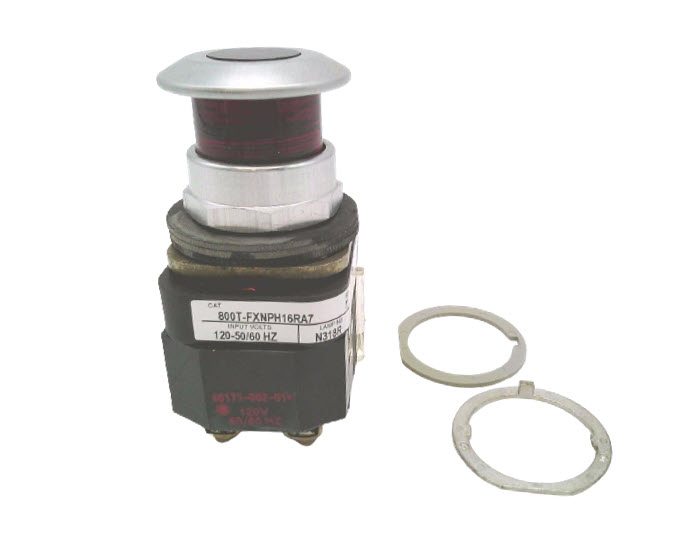

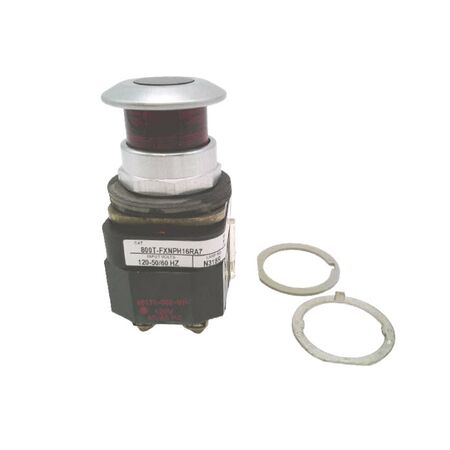

Allen-Bradley 800TFXNPH16RA7 Illuminated Push Button
The Allen-Bradley 800TFXNPH16RA7 is a durable illuminated push button with a 3-position push-pull mechanism, suitable for industrial control applications requiring reliable and protected operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 800TFXNPH16RA7 Illuminated Push Button
Brand: Allen-Bradley
SKU: 800TFXNPH16RA7
Alternatively Known As: Illuminated Push Button Switch, Mushroom Head Push Button, 3-Position Push-Pull Button
Technical Specifications
- Button Diameter: 30.5 mm
- Operation: 3-position push-pull (momentary-maintained-momentary)
- Illumination: LED with transformer, 120V AC 50/60 Hz
- Head Type: Mushroom
- Protection Rating: Type 4/13
- Contacts: 1 Normally Closed (NC), 1 Normally Open (NO)
- Material: Metal
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.3 kg
Key Features
- 30.5 mm diameter push button
- 3-position push-pull operation
- Illuminated metal mushroom head
- Type 4/13 rated for protection against dust and water
- Momentary-maintained-momentary switching
- LED transformer powered at 120V AC 50/60 Hz
- Red color standard with 1 normally closed and 1 normally open contact
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper operation.
Applications
- Industrial control panels
- Machinery operation and control
- Automation systems requiring push-pull control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable metal construction extends product lifespan, reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TFXNPH16RA7 Illuminated Push Button is available for immediate purchase, ideal for industrial and automation control panel applications.
