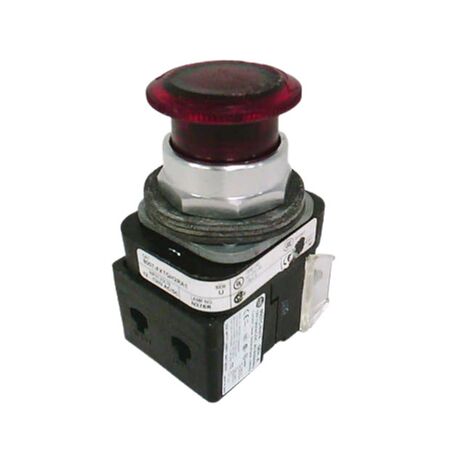

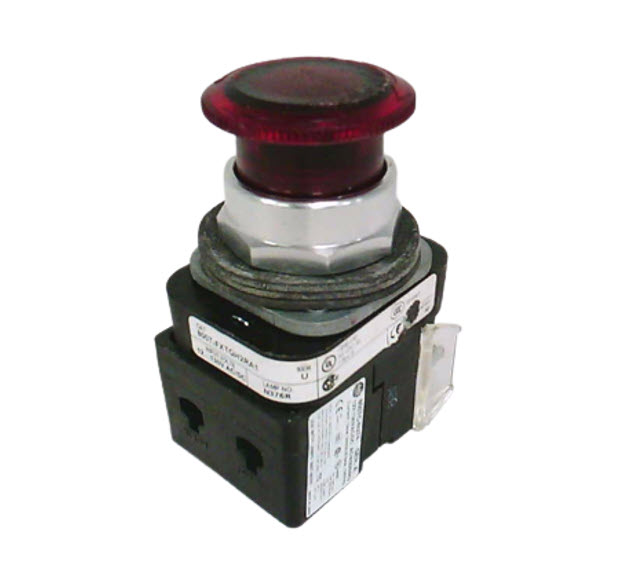

Allen-Bradley 800TFXTQH2RA1 Push Button Switch

BRAND: Allen-Bradley
SKU: 800TFXTQH2RA1
$457.60 List price: $570.30
+ −
30 Days Return Delivery Options
The Allen-Bradley 800TFXTQH2RA1 is a 2-position push button switch with a 30mm standard mushroom cap, designed for industrial control applications featuring a push-pull device with twist release and LED lamp indication.

Product Name/Title: Allen-Bradley 800TFXTQH2RA1 Push Button Switch

Brand: Allen-Bradley

SKU: 800TFXTQH2RA1

Alternatively Known As: Push Button Switch, Mushroom Head Push Button, Industrial Control Button, Allen-Bradley Push Button

Technical Specifications
  • Operating Voltage: 12-130 VAC/DC
  • Contact Configuration: 1 NCLB (Normally Closed Locking Button), 1 NO (Normally Open)
  • Cap Size: 30 mm standard mushroom
  • Device Type: Push-pull with twist release
  • Terminal Guards: None
  • Lamp Type: LED
  • No block in position 3
  • Dimensions (H x L x W): 30mm x 50mm x 30mm
  • Weight: 0.2 kg
Key Features
  • 2 position push-pull device with twist release
  • Standard mushroom cap in red color
  • No legend on cap for customizable labeling
  • No guards on terminals for easy wiring
  • Full voltage type operation
  • Includes LED lamp for status indication
  • 1 NCLB and 1 NO standard contacts
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper wiring.
Applications
  • Industrial control panels
  • Machinery operation
  • Manufacturing automation
  • Emergency stop and start controls
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • LED lamp reduces energy consumption compared to incandescent indicators
Warranty Information

Radwell 2-year warranty included; factory warranty does not apply.

Available Now

The Allen-Bradley 800TFXTQH2RA1 Push Button Switch is available for immediate purchase, ideal for industrial and manufacturing control applications.
