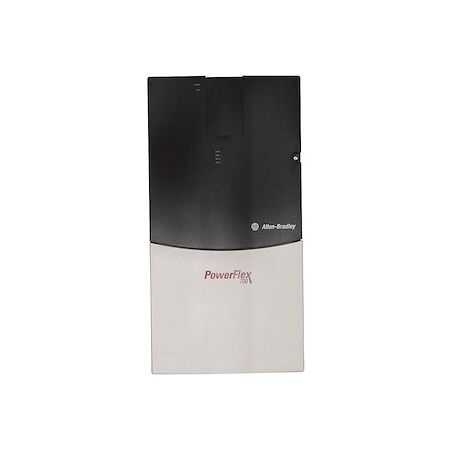

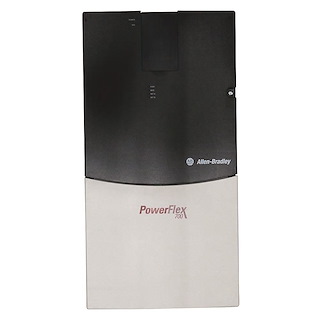

Allen-Bradley PowerFlex 700 AC Drive 20BC140F0AYNANC0
The Allen-Bradley PowerFlex 700 AC Drive 20BC140F0AYNANC0 is a high-performance industrial drive designed for 3-phase motor control applications, featuring advanced braking and communication capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 700 AC Drive 20BC140F0AYNANC0
Brand: Allen-Bradley
SKU: 20BC140F0AYNANC0
Alternatively Known As: PowerFlex 700 AC Drive, Allen-Bradley VFD, 20BC140F0AYNANC0 Variable Frequency Drive
Technical Specifications
- Input Voltage: 400 VAC
- Frequency: 50 Hz
- Phase: 3 Phase
- Current: 140 Amp
- Power: 75 kW
- Mounting: Open/Flange Mount IP00
- Brake: IGBT included
- Communication: RS485
- Control: Vector Control with 24 VDC I/O
- Filters: CE Filter and Common Mode Choke
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- AC Drive with 400 VAC, 50 Hz, 3 Phase power input
- 140 Amp current rating
- 75 kW power output
- Frame 5 size with open/flange mount IP00
- Includes HIM blank cover and manual
- Equipped with brake IGBT
- CE filter and common mode choke for noise reduction
- RS485 communication interface
- Vector control with 24 VDC I/O
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with industrial AC drives to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial motor control
- Manufacturing automation
- HVAC systems
- Pumps and fans
- Conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical stress on motors, extending equipment life and reducing waste
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex 700 AC Drive 20BC140F0AYNANC0 is available for immediate purchase, ideal for industrial motor control and automation applications.
