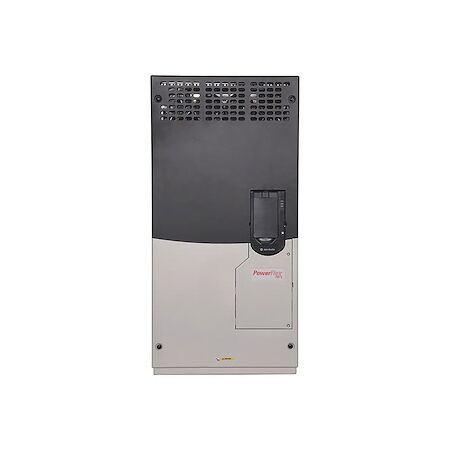

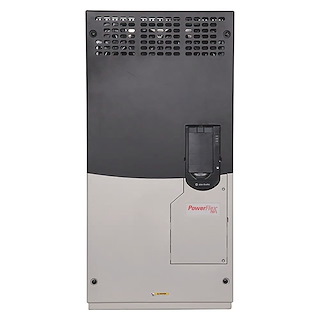

Allen-Bradley PowerFlex 753 AC Drive 160 kW 400 VAC IP54
The Allen-Bradley PowerFlex 753 AC Drive is a robust industrial variable frequency drive with 160 kW power rating, designed for reliable motor control with IP54 and NEMA Type 12 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 753 AC Drive 160 kW 400 VAC IP54
Brand: Allen-Bradley
SKU: 20F1AGC302AN0NNNNN
Alternatively Known As: PowerFlex 753 VFD, Allen-Bradley AC Drive, Allen-Bradley Variable Frequency Drive
Technical Specifications
- Power Rating: 160 kW / 215 HP
- Input Voltage: 400 VAC / 540 VDC
- Current: 302 Amp
- Cooling: Air cooled
- Ingress Protection: IP54, NEMA Type 12
- Features: AC input with precharge, filtering, jumper removed
- No internal transistor and no Human Interface Module (HIM)
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- Air cooled design for efficient thermal management
- AC input with precharge for smooth startup
- IP54 and NEMA Type 12 rated for dust and water resistance
- Filtering included for improved power quality
- No internal transistor and no HIM (Human Interface Module)
Professional Installation Requirements
- Installation by a qualified electrician or automation specialist is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems requiring variable speed control
- Pumps, fans, and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient motor control reduces power consumption
- Air cooled design minimizes environmental impact by avoiding liquid coolants
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley PowerFlex 753 AC Drive is discontinued by the manufacturer but available for immediate purchase with Radwell 2-year warranty. Ideal for industrial motor control applications.
