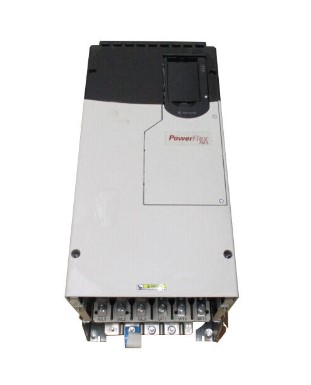

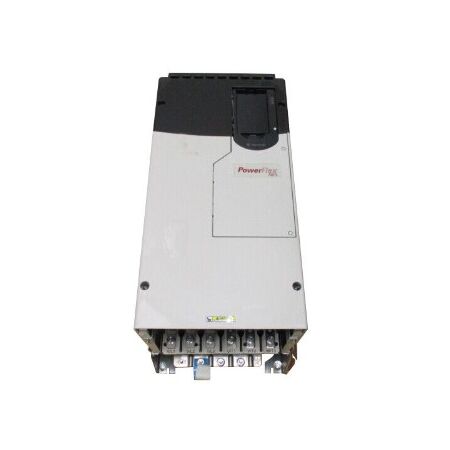

Allen-Bradley PowerFlex 755 AC Drive 110 kW 150 HP
The Allen-Bradley PowerFlex 755 AC Drive is a high-performance, air-cooled variable frequency drive designed for industrial motor control applications, rated at 110 kW (150 HP) with 480 VAC input and 650 VDC output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 755 AC Drive 110 kW 150 HP
Brand: Allen-Bradley
SKU: 20G1AND186AA0NNNNN
Alternatively Known As: PowerFlex 755 VFD, Allen-Bradley AC Drive, Variable Frequency Drive 110 kW, 150 HP VFD
Technical Specifications
- Input Voltage: 480 VAC
- DC Bus Voltage: 650 VDC
- Power Rating: 110 kW / 150 HP
- Current Rating: 186 AMP
- Cooling: Air cooled
- Enclosure Type: Open type
- Ingress Protection: IP20/IP00
- Internal Transistor included
- Filtering included
- Jumper removed configuration
- No HIM (Human Interface Module)
- Dimensions (H x L x W): 600mm x 400mm x 300mm
- Weight: 50 kg
Key Features
- Air cooled AC drive
- PowerFlex 755 series
- AC input with precharge
- Open type with IP20/IP00 rating
- Internal transistor
- Filtering included
- Jumper removed configuration
Professional Installation Requirements
- Installation by a qualified electrician or automation professional is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control and automation
- Manufacturing process drives
- HVAC systems requiring variable speed control
- Pumps, fans, and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient motor speed control reduces power consumption
- Air-cooled design minimizes environmental impact compared to liquid cooling
- Improves process efficiency and reduces waste energy
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply as product is discontinued by manufacturer.
Available Now
The Allen-Bradley PowerFlex 755 AC Drive is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial motor control and automation applications.
