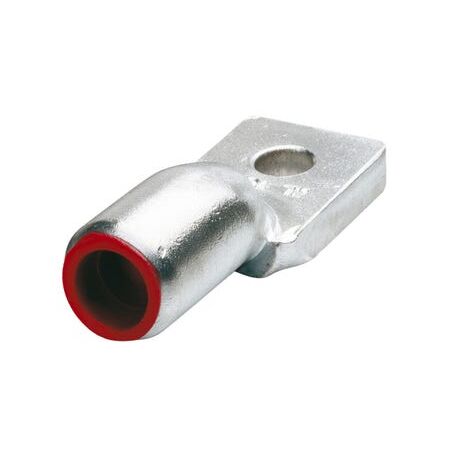

Aluminium Cable Lug 120mm2 M12 Funnel Entry Cabac
Cabac aluminium cable lug, 120mm2, funnel entry, chemically treated. Ideal for aluminium conductor terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal Conductor Size: 120 mm²
- Stud Size: 12 mm
- Palm Width: 30 mm
- Material: 99.6% pure electrical grade aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 10 mm x 120 mm x 40 mm
- Weight: 0.1 kg
Key Features
- Forged from solid 99.6% pure electrical grade aluminium rod for improved metal structure
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped for enhanced electrical reliability
- Crimp with standard hexagonal dies from palm outwards to force jointing compound into conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and reliable connections.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Used in electrical installations requiring reliable aluminium lugs for conductor termination
Standards & Compliance
- AS/NZS 4325 Part 1 – Electrical connectors for power cables
Environmental Benefits
- Manufactured from 99.6% pure aluminium, a recyclable and sustainable material
- Improved electrical efficiency reduces energy loss and heat generation
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Aluminium Lug 120mm2 - Stud 12mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring durable aluminium conductor lugs.
