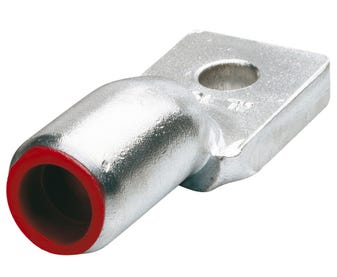

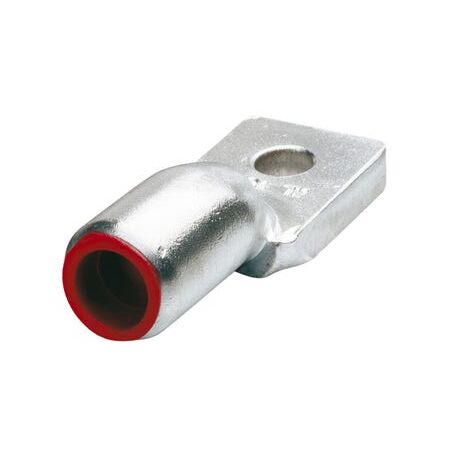

Aluminium Cable Lug 16mm² | Funnel Entry | Flexible Installation by Cabac
Aluminium cable lug with 16mm² conductor size and funnel entry design—ideal for industrial and commercial electrical installations. Built for reliable connections, with flexible installation and reduced contact resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Lug 16mm2 - Blank
Brand: Cabac
SKU: AL16
Alternatively Known As: Aluminium Cable Lug, Aluminium Crimp Lug, Electrical Aluminium Connector, Aluminium Terminal Lug, 16mm2 Aluminium Lug
Technical Specifications
- Nominal Conductor Size: 16 mm²
- Palm Width: 18 mm
- Conductive Material: 99.6% pure aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 40mm x 80mm x 18mm
- Weight: 0.1 kg
Key Features
- Forged from 99.6% pure electrical grade aluminium rod for superior metal integrity
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction for flexible installation
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped to improve long-term electrical reliability
- Crimping recommended with standard hexagonal dies from palm outwards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and reliable connections.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Industrial and commercial electrical installations requiring reliable aluminium lugs
- Electrical wiring and cabling terminations in power distribution systems
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical lugs and connectors
Environmental Benefits
- Manufactured from recyclable aluminium material
- Improved electrical efficiency reduces energy loss and heat generation
- Long-lasting durability reduces need for frequent replacements
Warranty Information
Cabac products come with a standard manufacturer warranty covering defects in materials and workmanship. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Al Lug 16mm2 - Blank aluminium lug is available for immediate purchase, ideal for electrical power connectivity applications requiring durable and efficient aluminium lugs.
