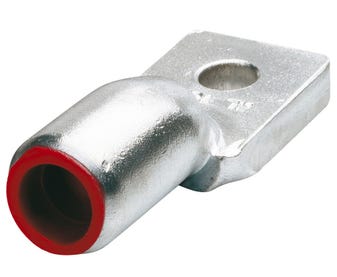

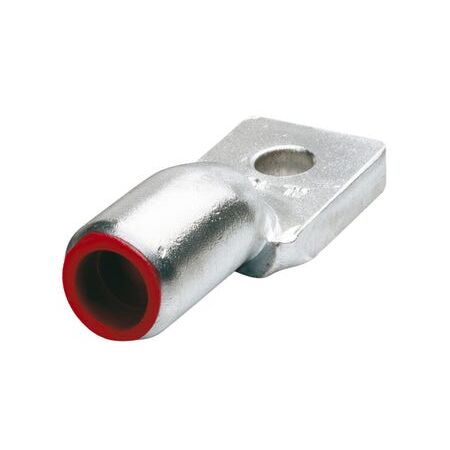

Aluminium Cable Lug 240mm² | 12mm Stud | Funnel Entry | Chemically Treated by Cabac
Aluminium cable lug with 240mm² conductor size and 12mm stud—ideal for electrical power connectivity. Built for stranded sector and circular stranded conductors, with a funnel entry and chemically treated barrel for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Lug 240mm2 - Stud 12mm
Brand: Cabac
SKU: AL240-12
Alternatively Known As: Aluminium Cable Lug, Aluminium Crimp Lug, Electrical Aluminium Lug, Aluminium Cable Terminal
Technical Specifications
- Nominal Conductor Size: 240 mm²
- Stud Size: 12 mm
- Palm Width: 37 mm
- Material: 99.6% pure electrical grade aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 15mm x 80mm x 37mm
- Weight: 0.3 kg
Key Features
- Forged from 99.6% pure electrical grade aluminium rod for improved metal structure
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped for enhanced electrical reliability
- Crimp with standard hexagonal dies from palm outwards to force jointing compound into conductors
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and reliable connections.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Used in electrical installations requiring reliable aluminium lugs for cable termination
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Manufactured from high purity aluminium which is recyclable
- Improved electrical efficiency reduces energy loss in connections
Warranty Information
Standard manufacturer warranty applies. Please contact Cabac for specific warranty details.
Available Now
The Cabac Aluminium Lug 240mm2 - Stud 12mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring durable and reliable aluminium cable lugs.
