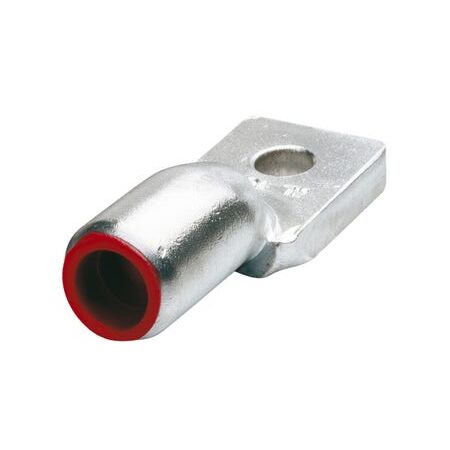

Aluminium Cable Lug 240mm2 M12 Funnel Entry Cabac

BRAND: CABAC
SKU: AL240-12
$10.10 List price: $13.50
1 EA ($10.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Cabac aluminium cable lug, 240mm2, funnel entry, chemically treated. Ideal for aluminium conductor terminations.
Technical Specifications
  • Nominal Conductor Size: 240 mm²
  • Stud Size: 12 mm
  • Palm Width: 37 mm
  • Material: 99.6% pure electrical grade aluminium
  • Tensile Strength: 110 MPa
  • Ductile Rating: 28%
  • Final Metal State: Fully Annealed
  • Operating Temperature Range: -20 to +140 °C
  • Electrical Resistivity: 2.6 micro-ohm cm (max)
  • Conductivity: 61.8% IACS (min)
  • Dimensions (H x L x W): 15mm x 80mm x 37mm
  • Weight: 0.3 kg
Key Features
  • Forged from 99.6% pure electrical grade aluminium rod for improved metal structure
  • Unique funnel entry design for easy insertion of stranded sector cables
  • Lug palm can be oriented in any direction
  • Barrel chemically treated to reduce contact resistance
  • Filled with jointing compound and capped for enhanced electrical reliability
  • Crimp with standard hexagonal dies from palm outwards to force jointing compound into conductors
Professional Installation Requirements
  • Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and reliable connections.
Applications
  • Electrical power connectivity for stranded sector and circular stranded aluminium conductors
  • Used in electrical installations requiring reliable aluminium lugs for cable termination
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Manufactured from high purity aluminium which is recyclable
  • Improved electrical efficiency reduces energy loss in connections
Warranty Information

Standard manufacturer warranty applies. Please contact Cabac for specific warranty details.

Available Now

The Cabac Aluminium Lug 240mm2 - Stud 12mm is available now for immediate purchase. Ideal for electrical power connectivity applications requiring durable and reliable aluminium cable lugs.
