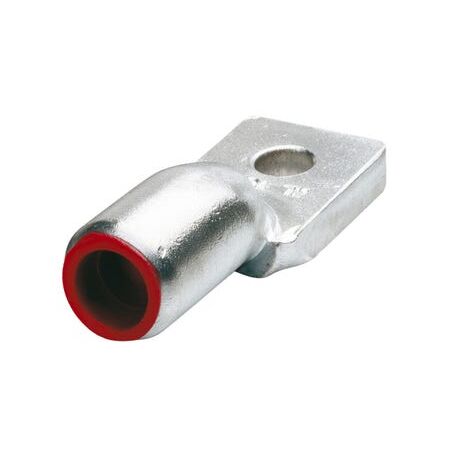

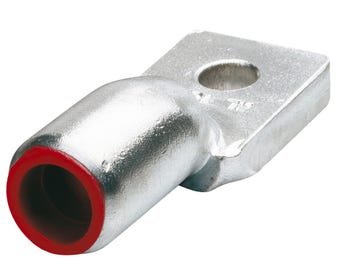

Aluminium Cable Lug 25mm² | Funnel Entry | Chemically Treated | Cabac
Aluminium cable lug with 25mm² nominal conductor size and funnel entry—ideal for electrical power connectivity. Built for industrial and commercial installations, with a chemically treated barrel for reduced contact resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Al Lug 25mm2 - Blank
Brand: Cabac
SKU: AL25
Alternatively Known As: Aluminium cable lug, Aluminium crimp lug, Electrical aluminium connector, Aluminium terminal lug, 25mm2 aluminium lug
Technical Specifications
- Nominal Conductor Size: 25 mm²
- Palm Width: 22 mm
- Conductive Material: 99.6% pure aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 10mm x 60mm x 22mm
- Weight: 0.1 kg
Key Features
- Forged from 99.6% pure electrical grade aluminium rod for superior metal integrity
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction for flexible installation
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped to improve long-term electrical reliability
- Crimping recommended with standard hexagonal dies from palm outwards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard hexagonal crimping dies, ensuring conductors are scratch brushed before crimping from palm outwards to secure jointing compound.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Industrial and commercial electrical installations requiring reliable aluminium lugs
- Electrical wiring and cabling terminations
Standards & Compliance
- Complies with AS/NZS 4325 Part 1 for electrical lugs and connectors
Environmental Benefits
- Manufactured from recyclable aluminium material
- Improved electrical efficiency reduces energy loss and heat generation
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Al Lug 25mm2 - Blank is available now for immediate purchase. Ideal for electrical power connectivity applications requiring reliable aluminium conductor terminations.
