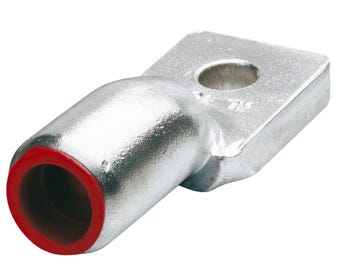

Aluminium Cable Lug 95mm² | 12mm Stud | High Conductivity | Flexible Installation by Cabac
Aluminium cable lug with 95mm² conductor size and 12mm stud—ideal for industrial and commercial electrical installations. Built for superior connectivity, with high conductivity and flexible installation options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

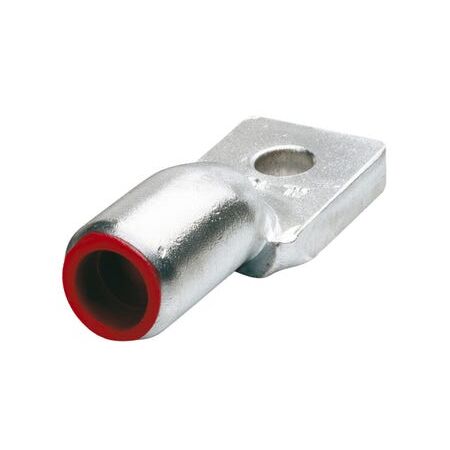

Product Name/Title: Al Lug 95mm2 - Stud 12mm
Brand: Cabac
SKU: AL95-12
Alternatively Known As: Aluminium Cable Lug, Aluminium Crimp Lug, Electrical Aluminium Lug, Aluminium Terminal Lug
Technical Specifications
- Nominal Conductor Size: 90 mm²
- Stud Size: 12 mm
- Palm Width: 30 mm
- Material: 99.6% pure electrical grade aluminium
- Tensile Strength: 110 MPa
- Ductile Rating: 28%
- Final Metal State: Fully Annealed
- Operating Temperature Range: -20 to +140 °C
- Electrical Resistivity: 2.6 micro-ohm cm (max)
- Conductivity: 61.8% IACS (min)
- Dimensions (H x L x W): 95mm x 95mm x 30mm
- Weight: 0.1 kg
Key Features
- Forged from 99.6% pure electrical grade aluminium rod for superior metal structure
- Unique funnel entry design for easy insertion of stranded sector cables
- Lug palm can be oriented in any direction for flexible installation
- Barrel chemically treated to reduce contact resistance
- Filled with jointing compound and capped to improve electrical reliability
- Crimp with standard hexagonal dies from palm outwards to ensure secure connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools and techniques to ensure secure and reliable connections.
Applications
- Electrical power connectivity for stranded sector and circular stranded aluminium conductors
- Industrial and commercial electrical installations requiring reliable aluminium lugs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Manufactured from recyclable aluminium material
- Improved electrical efficiency reduces energy loss and heat generation
Warranty Information
Warranty against manufacturing defects as per Cabac standard terms.
Available Now
The Cabac Aluminium Lug 95mm2 with 12mm Stud is available now for immediate purchase. Ideal for electrical power connectivity applications requiring durable and reliable aluminium lugs.
