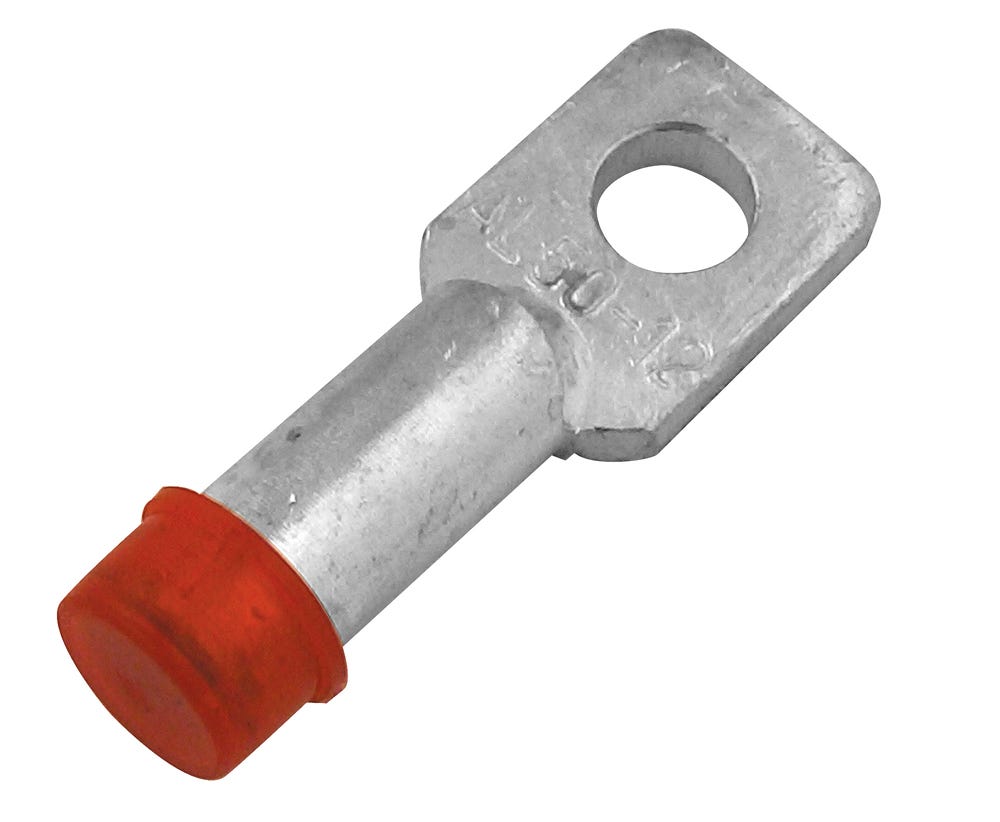

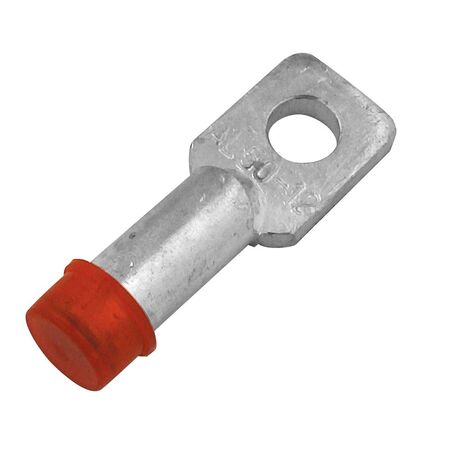

Aluminium CCT Lug 40mm2 12mm Stud | Heavy Duty Design | Tin Plated for Corrosion Resistance | @Each of 1 | by Cabac
The Aluminium CCT Lug 40mm2 12mm Stud is engineered for reliable electrical power connectivity in overhead CCT conductors. Made from 99.6% pure electrical grade aluminium, this heavy-duty lug features thicker barrels to withstand fault currents and is tin plated to enhance corrosion resistance. Ideal for electrical distribution and transmission lines, it ensures secure connections when installed by a qualified electrician.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium forged rod
- Stud Size: 12mm
- Cross Section: 40mm2
- Tin plated for corrosion resistance
- Filled with jointing compound and capped
- Designed for CCT (Covered Conductor Thick) aluminium conductors
- Dimensions (H x L x W): 20mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Heavy duty aluminium lug designed specifically for CCT conductors
- Thicker barrels to withstand fault current situations
- Tin plated to reduce corrosion and improve crimping contact resistance
- Filled with jointing compound and capped for enhanced protection
- Crimping recommended with standard hexagonal dies from palm outwards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard hexagonal crimping dies to ensure secure and reliable connections.
Applications
- Electrical power connectivity for overhead CCT conductors
- Suitable for use in electrical distribution and transmission lines
- Ideal for reducing flashover in overhead aluminium conductors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Minimizes conductor flashover reducing electrical faults and outages
- Enhances service life of conductors by preventing corrosion
- Supports reduced vegetation clearance, preserving natural surroundings
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Aluminium CCT Lug 40mm2 12mm Stud is available for immediate purchase, ideal for electrical power connectivity in overhead CCT conductor applications.
