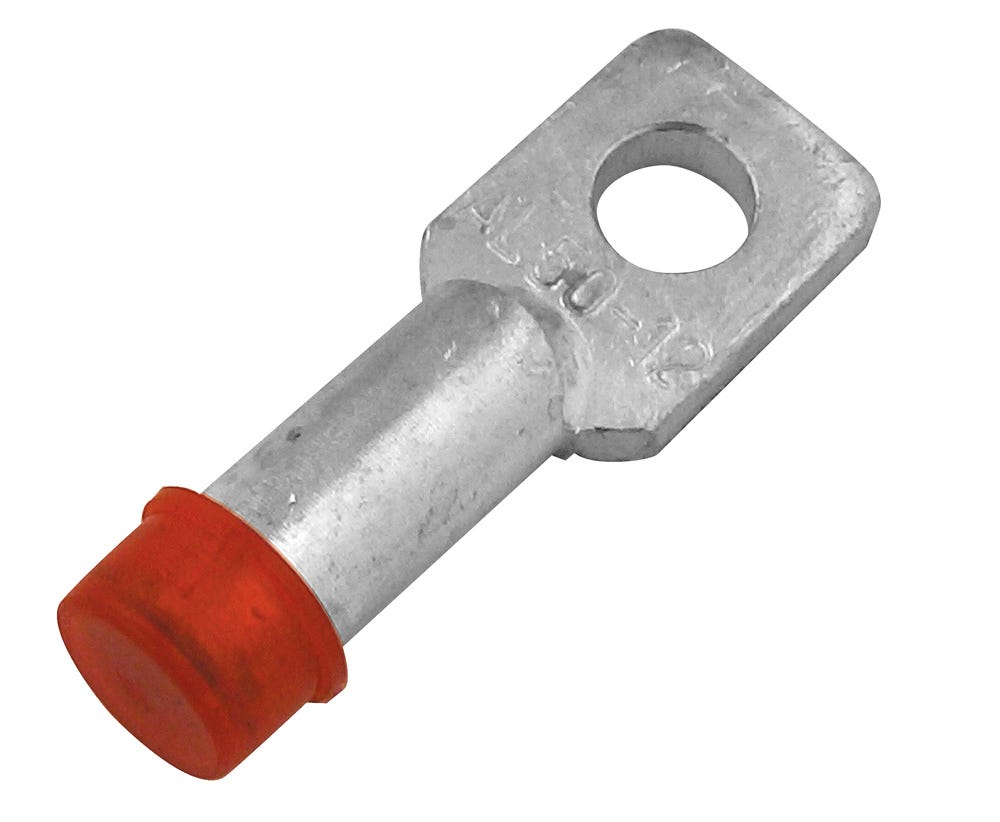

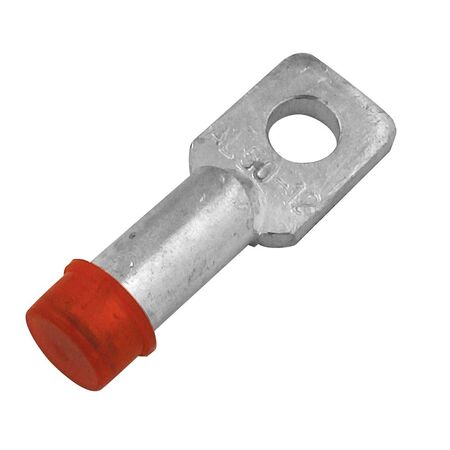

Aluminium CCT Lug 80mm² 12mm Stud | Heavy Duty Design | Tin Plated for Corrosion Resistance | @Each of 1 | by Cabac
The Aluminium CCT Lug 80mm² 12mm Stud is engineered for reliable electrical power connectivity in overhead aluminium CCT conductors. Made from 99.6% pure electrical grade aluminium and tin plated for corrosion resistance, this heavy-duty lug is ideal for utility and infrastructure installations, ensuring secure connections and reducing flashover incidents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: 99.6% pure electrical grade aluminium forged rod
- Stud Size: 12mm
- Cross Section: 80mm²
- Tin plated for corrosion resistance
- Filled with jointing compound and capped
- Designed for CCT (Covered Conductor Thick) aluminium conductors
- Compatible with standard hexagonal crimping dies
- Dimensions (H x L x W): 15mm x 100mm x 40mm
- Weight: 0.15 kg
Key Features
- Heavy duty aluminium lug designed specifically for CCT conductors
- Thicker barrels to withstand fault current situations
- Made from 99.6% pure electrical grade aluminium forged rod
- Tin plated to reduce corrosion and improve crimping contact resistance
- Filled with jointing compound and capped for enhanced protection
- Crimping recommended with standard hexagonal dies from palm outwards
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and reliable connections.
Applications
- Electrical power connectivity for overhead aluminium CCT conductors
- Suitable for use in electrical distribution and transmission lines
- Ideal for reducing flashover in overhead power lines
- Used in utility and infrastructure electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces flashover incidents minimizing power outages and environmental disturbances
- Corrosion resistance extends product life reducing waste and replacement frequency
Warranty Information
Cabac offers a standard warranty against manufacturing defects; please refer to the supplier for specific warranty terms.
Available Now
The Cabac Aluminium CCT Lug 80mm2 12mm Stud is available for immediate purchase, ideal for electrical power connectivity in overhead aluminium CCT conductor applications.
