Aluminium Electrical Enclosure IP66 | 707Hx707Wx402D | RAL7035 Finish by B&R Enclosures
Aluminium electrical enclosure with IP66 protection and 707Hx707Wx402D dimensions—ideal for small motor control and lighting installations. Built for durability with reversible doors and multiple mounting options.
Sign in
Please login to continue to your account.

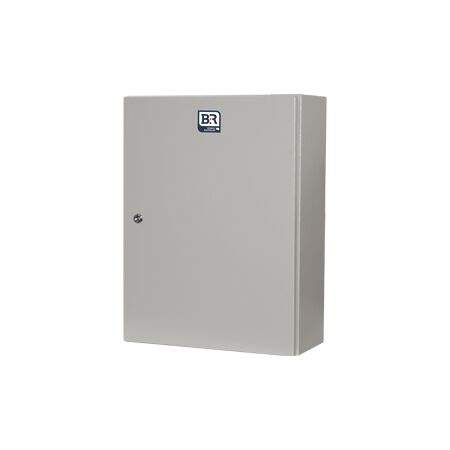

Product Name/Title: Monarch IP 707Hx707Wx402D IP66 Alum RAL7035
Brand: B&R Enclosures
SKU: IP25254/A
Alternatively Known As: Monarch IP Enclosure, Aluminium Electrical Enclosure, IP66 Enclosure
- Body material: Aluminium
- Body thickness: 2.5mm
- Polyurethane gasket (formed in place)
- Powdercoated light grey RAL7035 or Ripple Orange – X15 finish
- C rail mountings
- Gland plate (fitted internally or externally)
- 7mm square turnbuckle lock (below 1600mm high)
- Lockable L handles (above 1600mm high)
- 3-point locking (600mm high and above)
- Removable back (400mm deep and above)
- Dimensions (H x L x W): 600mm x 707mm x 707mm
- Weight: 0.4 kg
- IP66 protection rating
- Vertical body and door rails
- Earth strap kit comes as standard
- Reversible doors (right hand hinging as standard)
- Multiple mounting options for flexible installation
- Wide range of accessories for added versatility
- Region D wind rated to AS1170.2-2002
- Professional installation is recommended to ensure compliance with safety standards.
- Small motor control applications
- Lighting installations
- CT metering
- Small switchboards
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
- Durable aluminium construction reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Monarch IP – Aluminium Enclosure is available now for immediate purchase, ideal for various electrical applications.
