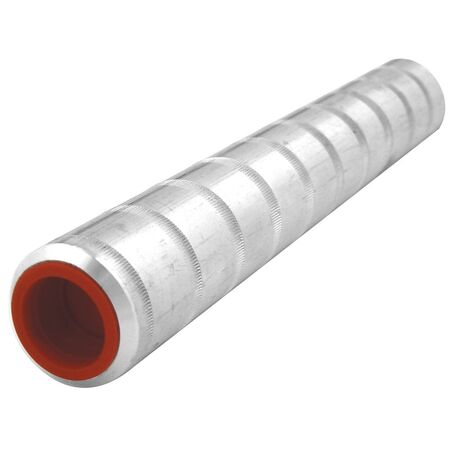

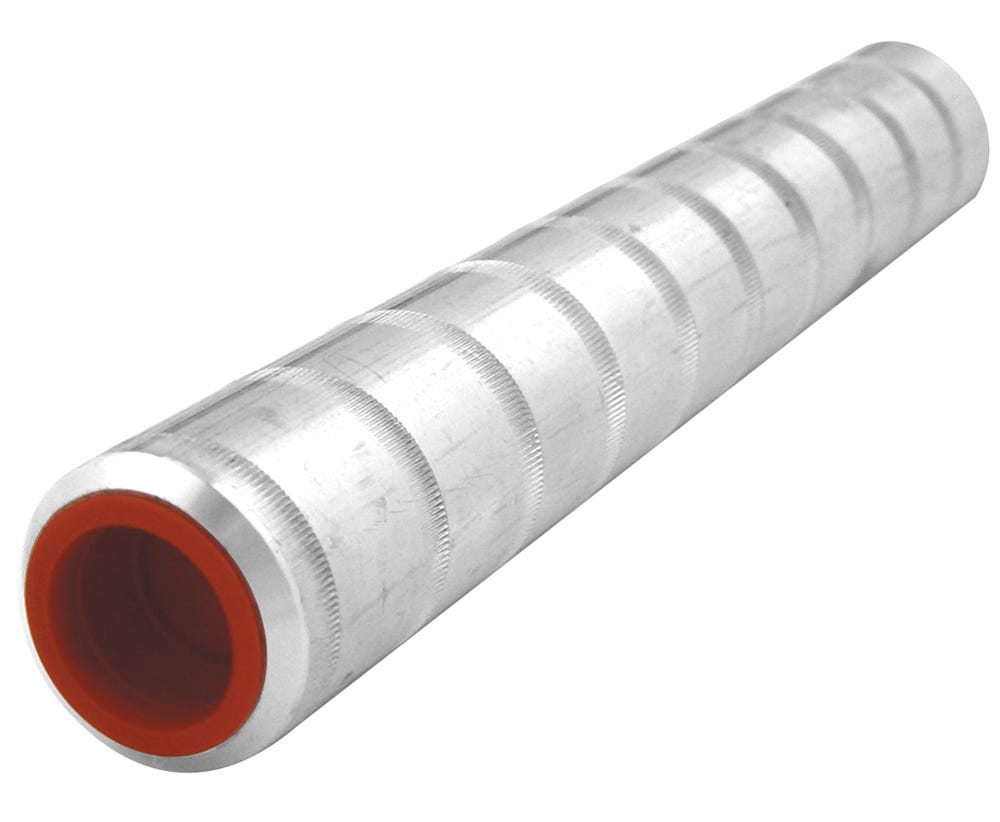

Aluminium Full Tension Sleeve for 19/3.75 ACSR | Durable Aluminium | Centre Cable Location Dimple | @Each of 1 | by Cabac
The Aluminium Full Tension Sleeve for 19/3.75 ACSR is designed for reliable overhead electrical conductor splicing and tensioning. Built with durable aluminium and featuring a centre cable location dimple, it ensures accurate positioning and secure connections. Ideal for power distribution applications, this sleeve is filled with jointing compound and compatible with hex crimp or versa-crimp indent style crimping methods.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Full Tension Sleeve for 19/3.75 ACSR | Durable Aluminium | Centre Cable Location Dimple | @Each of 1 | by Cabac
Brand: Cabac
SKU: AFT80R
Alternatively Known As: Aluminium Tension Sleeve, ACSR Full Tension Sleeve, Overhead Conductor Sleeve, Crimping Sleeve for ACSR
Technical Specifications
- Material: Aluminium
- Type: Full tension sleeve 'R' style
- Suitable for: 19/3.75 ACSR conductors

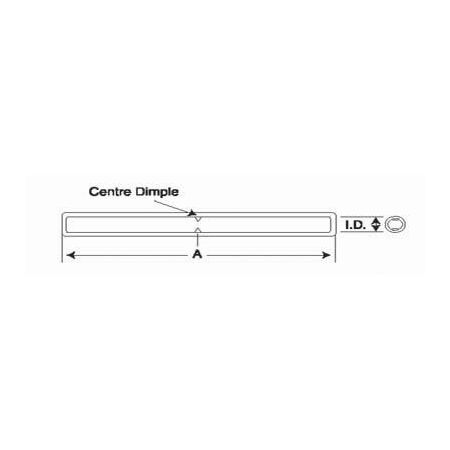

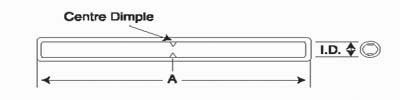

- Features: Centre cable location dimple
- Filled with jointing compound
- Crimping method: Hex crimp or versa-crimp indent style
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed for full tension loads with ACSR conductors
- Centre cable location dimple for accurate positioning
- Filled with jointing compound to ensure secure connection
- Compatible with hex crimp or versa-crimp indent style crimping
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Overhead electrical conductor splicing and tensioning
- Full tension loads with ACSR conductors in power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminium construction reduces need for frequent replacements
- Supports efficient electrical connections reducing energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The Cabac Aluminium Full Tension Sleeve Lemon 19/3.75 AFT80R is available for immediate purchase, ideal for overhead electrical conductor tensioning applications.
