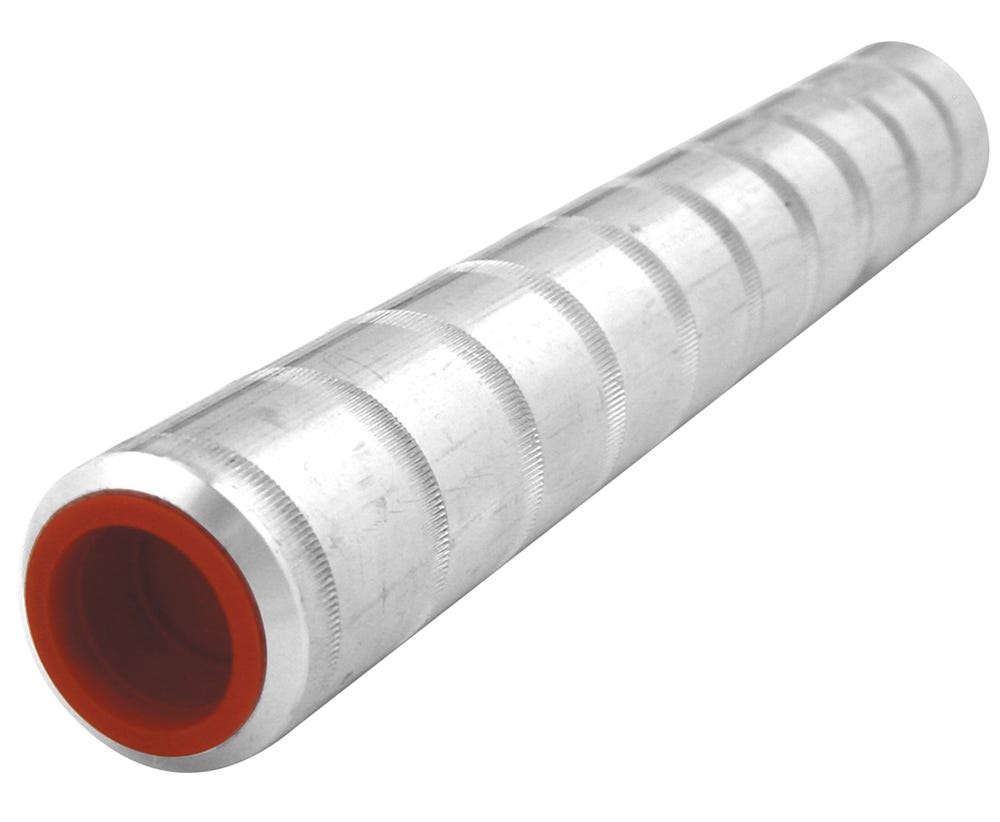

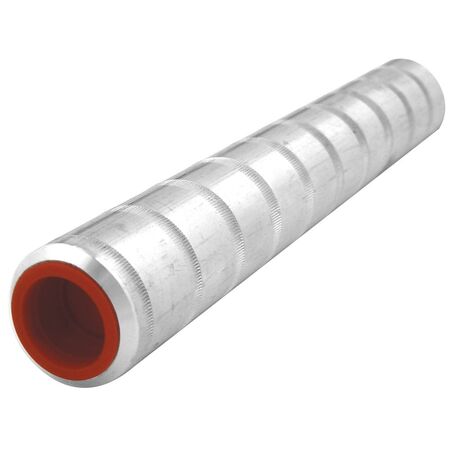

Aluminium Full Tension Sleeve for 6/1/3.75 | Jointing Compound Filled | Centre Cable Location Dimple | @Each of 1 | by Cabac
The Aluminium Full Tension Sleeve for 6/1/3.75 is designed for full tension loads with ACSR conductors, ensuring secure connections with its jointing compound fill. Ideal for electrical overhead line repairs and maintenance, this sleeve features a centre cable location dimple for precise installation, making it perfect for utility and power distribution networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Full Tension Sleeve for 6/1/3.75 | Jointing Compound Filled | Centre Cable Location Dimple | @Each of 1 | by Cabac
Brand: Cabac
SKU: AFT50R
Alternatively Known As: Aluminium Full Tension Sleeve, AFT50R Sleeve, Overhead Conductor Sleeve, ACSR Full Tension Sleeve
Technical Specifications
- Material: Aluminium
- Designed for 6/1/3.75 ACSR conductor size
- Filled with jointing compound
- Compatible with hex crimps and versa-crimp indent style crimping

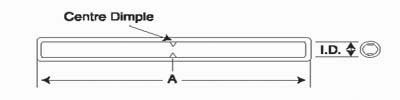

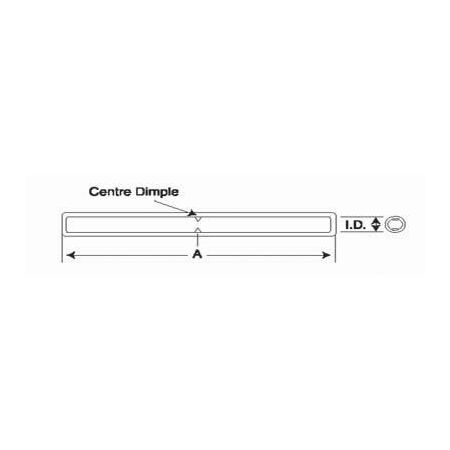

- Centre cable location dimple for precise installation
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed for full tension loads with ACSR conductors
- Centre cable location dimple for accurate positioning
- Filled with jointing compound to ensure secure connection
- Compatible with hex crimps or 'versa-crimp' indent style crimping
Professional Installation Requirements
- Installation should be performed by a qualified electrical technician experienced with overhead conductor fittings to ensure safety and compliance.
Applications
- Electrical overhead line repairs and maintenance
- Full tension load applications with ACSR conductors
- Utility and power distribution networks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminium construction reduces need for frequent replacements
- Ensures secure electrical connections minimizing energy loss
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for detailed warranty terms.
Available Now
The Cabac Al.Full Tens.Sleeve for 6/1/3.75 (AFT50R) is available for immediate purchase, ideal for electrical overhead line repairs and full tension load applications.
