Trade Discount 17%

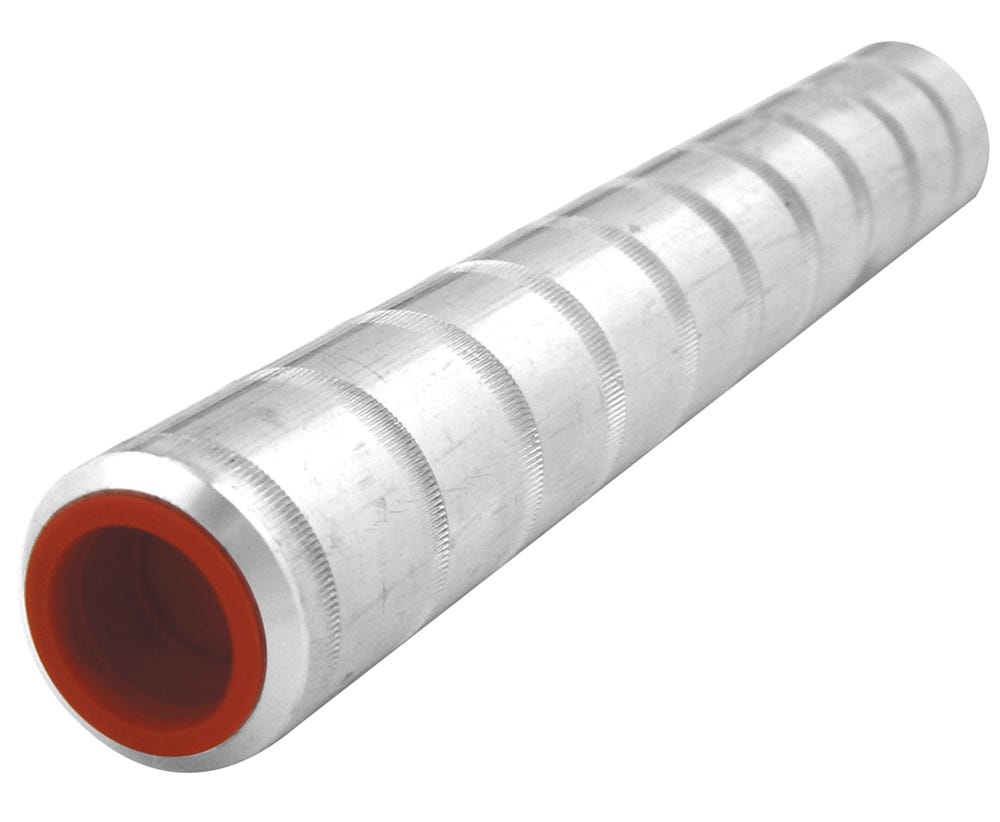

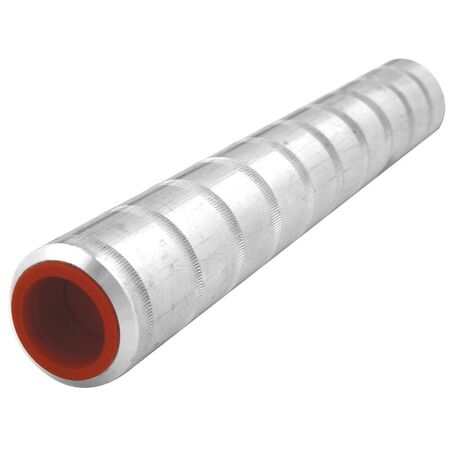

Aluminium Full Tension Sleeve 7/3.00 AND 3.5 | ACSR Compatible | Centre Cable Dimple | @Each of 1 | by Cabac
The Aluminium Full Tension Sleeve 7/3.00 AND 3.5 is designed for full tension loads with ACSR conductors, featuring a centre cable location dimple for precise alignment. Filled with jointing compound, it ensures a secure connection, making it ideal for overhead electrical conductor applications in utility and infrastructure projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Aluminium Full Tension Sleeve 7/3.00 AND 3.5 | ACSR Compatible | Centre Cable Dimple | @Each of 1 | by Cabac
Brand: Cabac
SKU: AFT44R
Alternatively Known As: Aluminium Tension Sleeve, ACSR Full Tension Sleeve, Overhead Conductor Sleeve
Technical Specifications
- Material: Aluminium
- Type: Full tension sleeve 'R' style
- Compatible with ACSR conductors
- Includes centre cable location dimple
- Filled with jointing compound
- Crimping method: Hex crimp or versa-crimp indent style
- Dimensions (H x L x W): 20mm x 100mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed for full tension loads with ACSR conductors
- Centre cable location dimple for precise alignment
- Filled with jointing compound to ensure secure connection
- Crimp using hex crimps or 'versa-crimp' indent style crimping
Professional Installation Requirements
- Installation should be performed by qualified electrical professionals using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Overhead electrical conductor connections
- Full tension loads with ACSR conductors
- Electrical utility and infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable aluminium material
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac Aluminium Full Tension Sleeve 7/3.00 AND 3.5 is available for immediate purchase, ideal for overhead electrical conductor tension applications.
